Product code: H000907

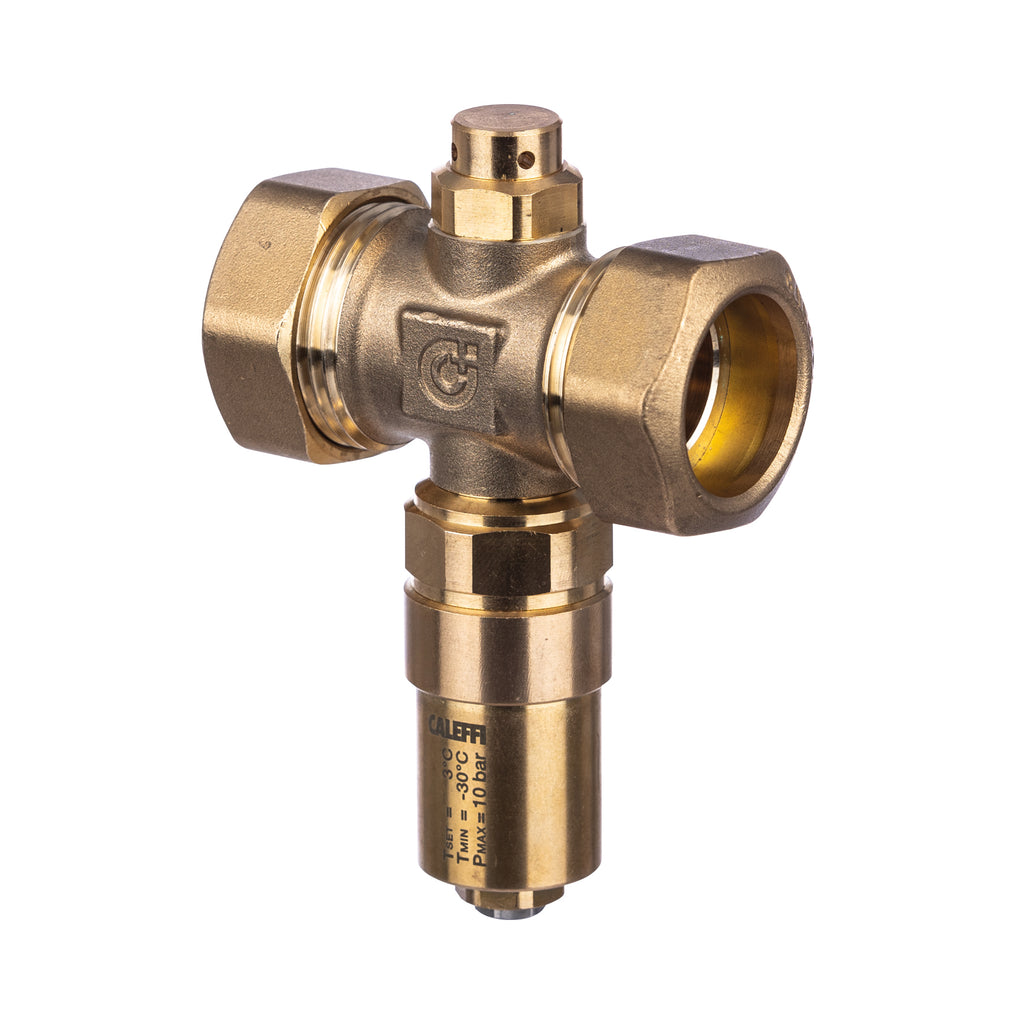

Altecnic iStop Anti-Freeze Valve 28mm 108301
The iStop antifreeze valve can drain the circuit medium when the temperature reaches an average of 3˚C ...
Read more- Suitable for use with heat pump systems
- Opening temperature of 3°C
- Closing temperature of 4°C
- Replaceable vacuum breaker and thermostatic cartridge
- Suitable for use with fittings and pipes connected by a union
- Protects heating system from damaged caused by ice formation
Description
The iStop antifreeze valve can drain the circuit medium when the temperature reaches an average of 3˚C. This prevents ice formation within the water system's circuit (particularly if it has a heat pump) to protect equipment, valves, and pipework. These valves can be used with various fittings and pipes connected to a union.
- Suitable for use with heat pump systems
- Opening temperature of 3°C
- Closing temperature of 4°C
- Replaceable vacuum breaker and thermostatic cartridge
- Suitable for use with fittings and pipes connected by a union
- Protects heating system from damaged caused by ice formation
- Compression connections
*See Technical Attachments for more precise parameters and conditions.
Specification
Brand
Altecnic
Certifications Met
BS EN 1254
Colour
Brass
Connection Type
Compression
Manufacturer's Model No
108301
Material
Brass, Stainless Steel, EPDM
Max. Working Pressure
10 bar
Max. Working Temperature
65˚C
Mounting Orientation
Vertical
Product Diameter
28mm
Product Height
109mm
Product Width
71mm
Range Description
Altecnic iStop Valves
Suitable for Renewable Energy Systems
Suitable for Renewable Energy Systems
System Suitability
Suitable for Domestic Use.
Temperature Range
0 to 65˚C
Type
Antifreeze Valve
Downloads
Tech Specs
Altecnic iStop Anti-Freeze Valve 28mm 108301
