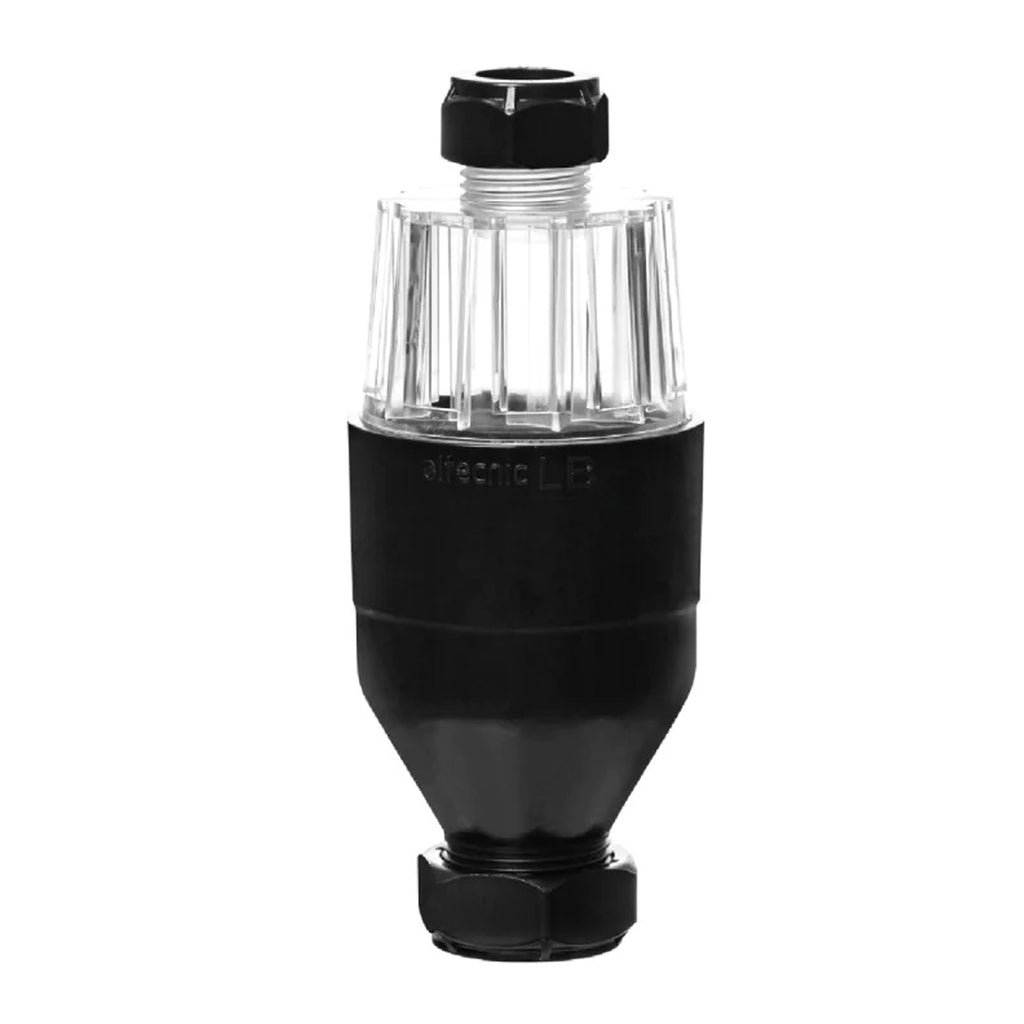

Altecnic Dry Trap Tundish 15mm x 22mm 128-2010
The Altecnic Dry Trap Tundish is designed for use with HIUs, central heating boilers, and hot water cylinders to safely discharge hot water from pressure and temperature relief valves.
Read more- 5 Year warranty
- WRAS approved
- Kiwa approved
- Suitable for use with R250 copper tube
- Anti-splash design for visual discharge indicator without the mess
- Tundish and dry trap in one to prevent odours from escaping
This product will be available soon, please contact us for more information on this product.
Description
The Altecnic Dry Trap Tundish is designed for use with HIUs, central heating boilers, and hot water cylinders to safely discharge hot water from pressure and temperature relief valves. Its visible flow serves as an indicator for potential issues. Unlike traditional tundishes that discharge into trapped gullies, this tundish allows for direct piping to a drain, creating an air gap that prevents unpleasant odours from passing up the pipe.
- 5 Year warranty
- WRAS approved
- Kiwa approved
- Suitable for use with R250 copper tube
- Anti-splash design for visual discharge indicator without the mess
- Tundish and dry trap in one to prevent odours from escaping
- Compact and easy to install in tight spaces
- Complies with Building Regulations
Specification
Brand
Altecnic
Colour
Black
Inlet Connection Size
15mm
Manufacturer Guarantee/ Manufacturer Warranty
1 Year Warranty
Manufacturer's Model No
128-2010
Material
Plastic
Max. Operating Temperature
120˚C
Outlet Connection
22mm
Product Height
124mm
Range Description
Tundish
Type
Tundish
