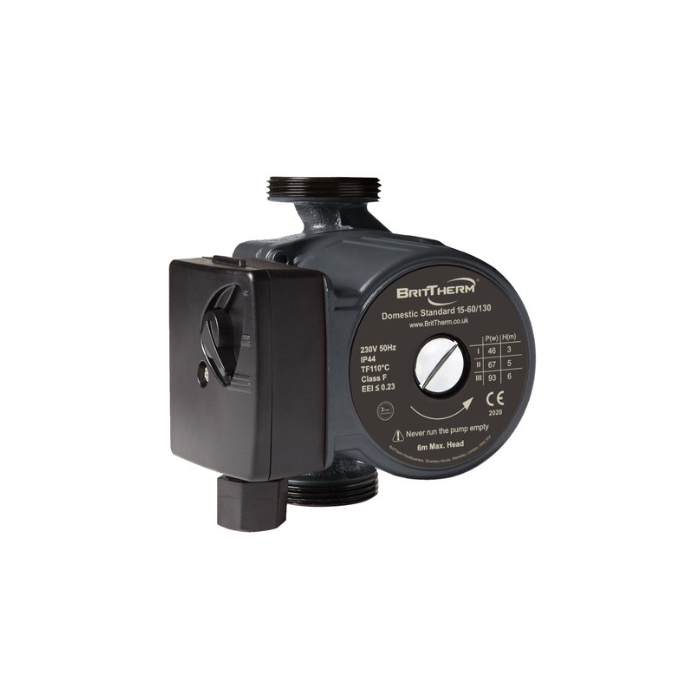

BritTherm™ DS15 15-60/130 Domestic Central Heating Circulating Pump

Description

The BritTherm DS15 15-60/130 Domestic Central Heating Circulating Pump is a versatile and efficient pump that is designed for easy installation and integration into your central heating system. With a threaded connection of 1.1/2" and a port-to-port distance of 130mm, this pump delivers maximum performance with a maximum head of 6 metres. As a reliable replacement integrated circulator, it ensures consistent heating throughout your space and boasts a maintenance-free design for its entire service life, making it a highly reliable choice for central heating system pumps. Control the pump with ease using three adjustable speeds, accessed through a convenient mechanical switch. The IP42 rated cast iron pump volute casing is cataphoresis coated for superior corrosion resistance, while the aluminium and ventilated casing eliminate any concerns about internal condensation or corrosion. With a standard 230 V AC, 50 Hz power supply, this circulator offers added convenience and can be manually set to three different speeds, allowing for personalised performance. With a temperature range from 2 to 110°C, this circulator is versatile for a range of applications. Backed by a 3-year BritTherm™ guarantee, the Domestic Standard offers dependable performance and peace of mind.

• 3 year guarantee
• Maximum flow rate of 65 litres per minute
• Easy to use three speed manual control
• Suitable for underfloor heating systems
• Suitable for multi zone heating systems
• Suitable for single zone heating systems
• 1 1/2" threaded connection
• IP42 rating for moisture protection and durability
• 6 metre maximum head
• Port-to-port distance of 130mm
• Cast iron casing coated in cataphoresis
• Aluminium and ventilated casing

Specification
