Product code: H000004

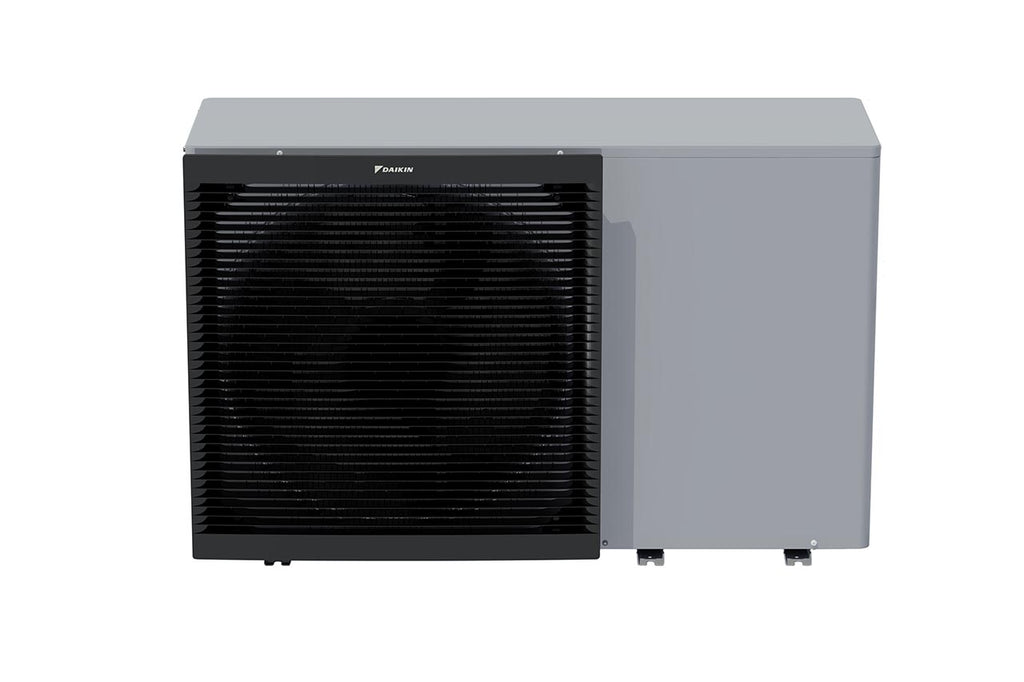

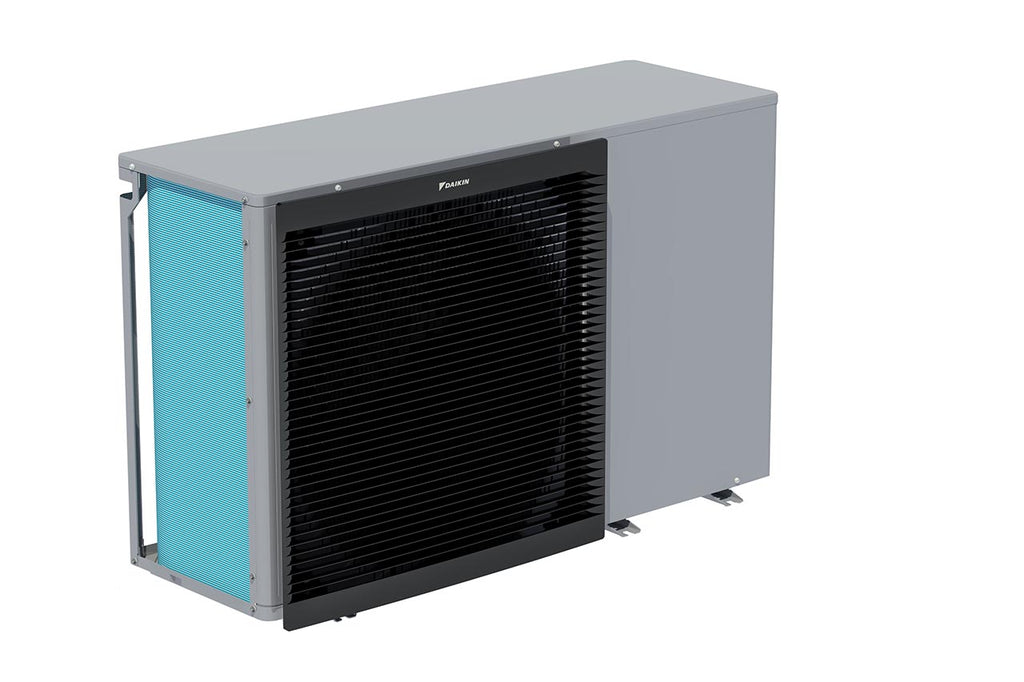

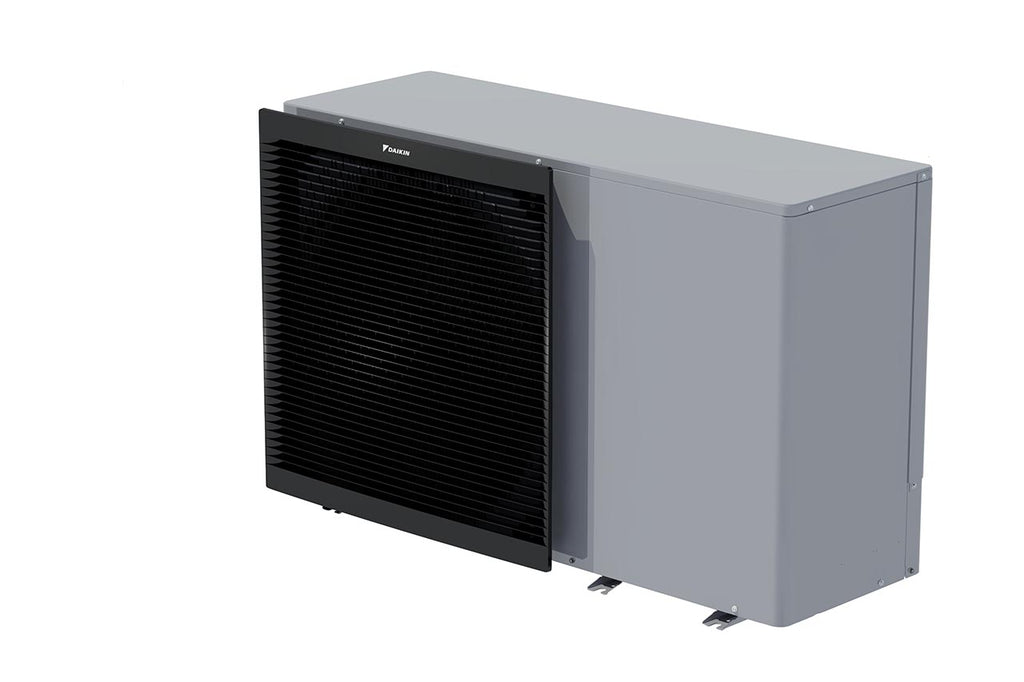

Daikin Altherma 3 Low Temp Reversible R32 Monobloc Heat Pump 1Ph 9kW EBLA09D3V3

Daikin Altherma 3 Low Temp Reversible R32 Monobloc Heat Pump 1Ph 9kW EBLA09D3V3
Daikin Altherma 3 Low Temp Reversible R32 Monobloc Heat Pump 1Ph 9kW EBLA09D3V3
Daikin Altherma 3 Low Temp Reversible R32 Monobloc Heat Pump 1Ph 9kW EBLA09D3V3

The Daikin Altherma 3 Low Temperature Monobloc Heat Pump 9kW EBLA09D3V3 features a monobloc all-in-one design that includes hydraulic parts and an optional W-LAN cartridge connection ...

Read more
  • Reversible air to water monobloc outdoor unit for when indoor space is limited
  • Suitable for large renovations and new builds
  • Optional WLAN cartridge connection
  • Compatible with domestic hot water tanks
  • Control from anywhere with a smartphone or device with Onecta app (optional)
  • Air-to-water heat pump for both heating and cooling
A+++
£4,600.14 excl. VAT
£5,520.17inc. VAT

Available in 1-2 days

Description

The Daikin Altherma 3 Low Temperature Monobloc Heat Pump 9kW EBLA09D3V3 features a monobloc all-in-one design that includes hydraulic parts and an optional W-LAN cartridge connection. It can be combined with domestic hot water and offers an energy-efficient heating and cooling system based on air to water heat pump technology. A separate back-up heater kit is also available.

For more specific details, contact Oceanair for compatibility and suitability advice.

  • Reversible air to water monobloc outdoor unit for when indoor space is limited
  • Suitable for large renovations and new builds
  • Optional WLAN cartridge connection
  • Compatible with domestic hot water tanks
  • Control from anywhere with a smartphone or device with Onecta app (optional)
  • Air-to-water heat pump for both heating and cooling
  • Monobloc all-in-one design, including all hydraulic components
  • Offers an optional built-in 3 kW electric back-up heater or a separate back-up heater kit for additional heating needs
  • Available in single-phase and three-phase models

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate 48 m³/min
Brand Daikin
Colour Silver
Compatible with Compatible with Daikin Altherma Range. Contact Oceanair for more details.
COP* 4.91
EER* 3.35
Energy Rating A+++
Heat Output 9kW
Insulation Type EPDM
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No EBLA09D3V3
Max. Working Pressure Expansion Vessel - 4 bar
Nom. Cooling Capacity 9.35kW
Nom. Heating Capacity 9.37kW
Operating Ambient Temperature Range (Heating) -25°C to 35°C
Operating Ambient Temperature Range (Hot Water) -25°CDB to 35°CDB
Phrase Single Phase
Power Voltage Supply 230V, 50Hz
Product Depth 460mm
Product Height 870mm
Product Width 1380mm
Range Description Daikin Altherma 3
Refrigerant Type R32
SEER* 5.62
Sound Power Level 62 dBA
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for Domestic Use. Suitable for Domestic Air Source Heat Pump Systems.
System Type Reversible
Type Monobloc Air Source Heat Pump
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)
* Efficiency Data Notes cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C)

Visit your local branch or contact us for more information.
