Product code: H000010

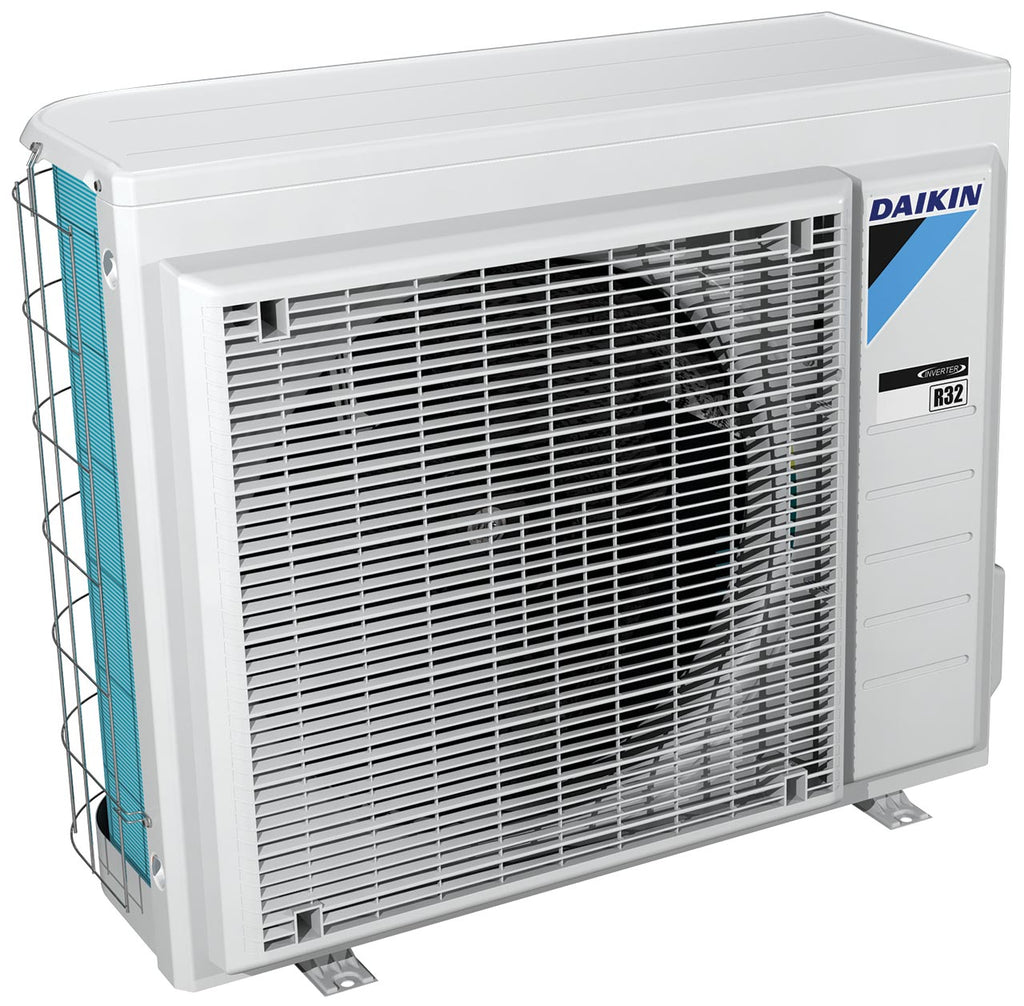

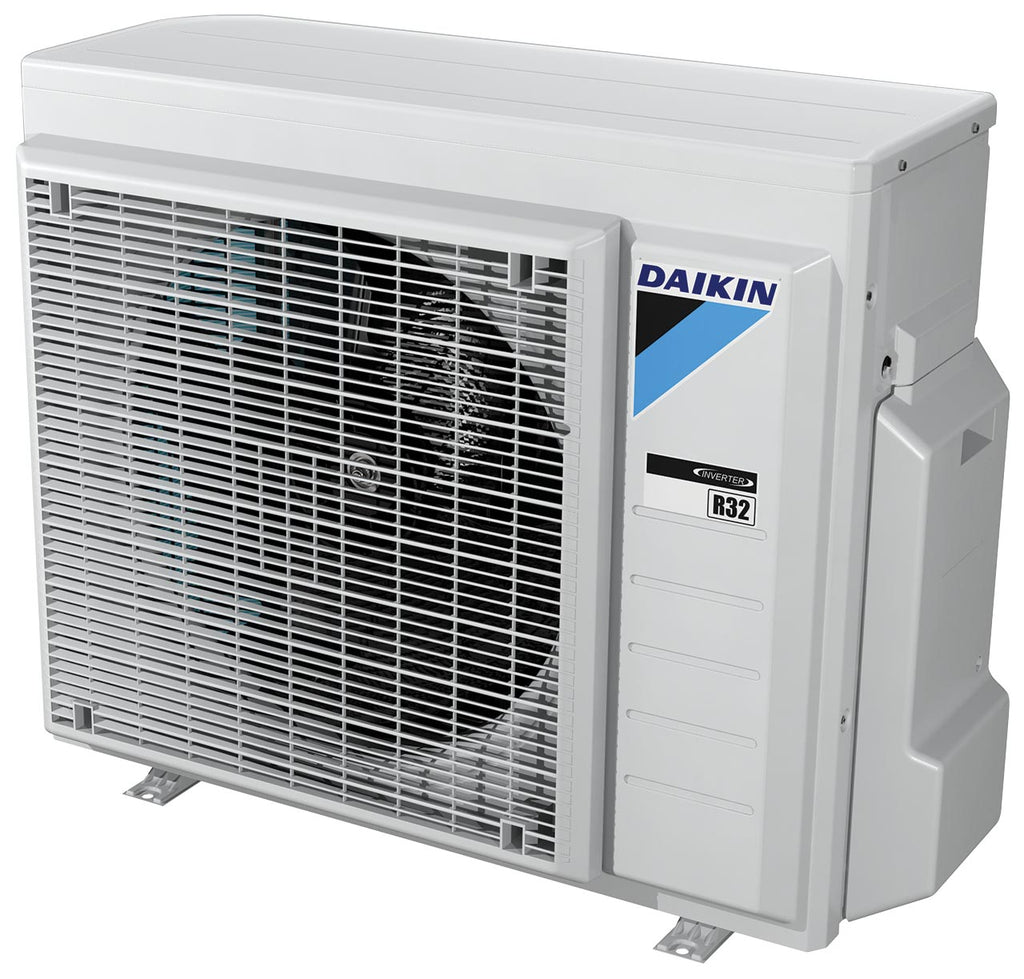

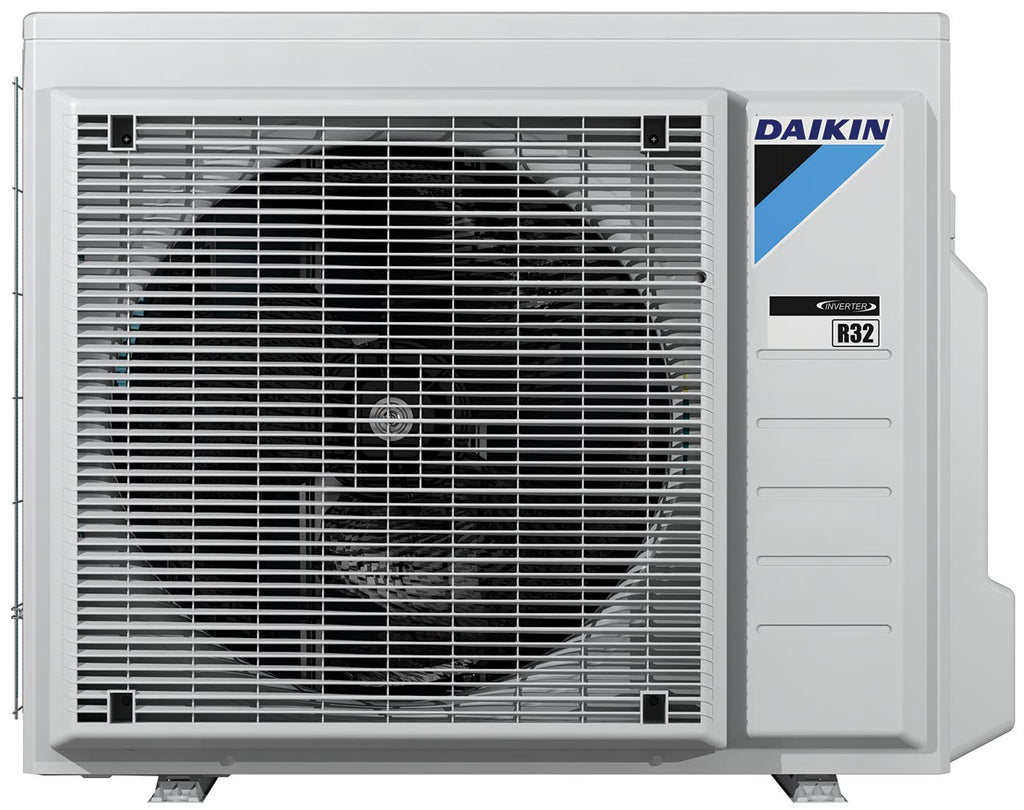

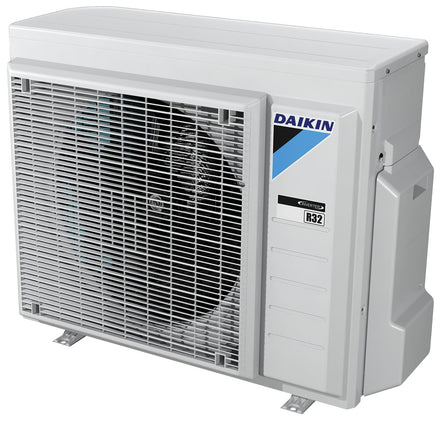

Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW

Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW
Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW
Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW
Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW
Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW
Daikin Altherma 3 R ERGA06EVA Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 6kW

Incorporating R-32 Bluevolution technology, this system reduces environmental impact by 68% compared to R-410A, achieves lower energy consumption through superior energy efficiency, and requires up to 16% less refrigerant ...

Read more
  • Includes W-LAN cartridge for connectivity
  • Operates effectively in outdoor temperatures as low as -25°C
  • Uses R-32 refrigerant, reducing environmental impact by 68% compared to R-410A, with lower energy consumption and a 16% smaller refrigerant charge
  • Control from anywhere with a smartphone or device with Onecta app (optional)
A++
£1,449.96 excl. VAT
£1,739.95inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Incorporating R-32 Bluevolution technology, this system reduces environmental impact by 68% compared to R-410A, achieves lower energy consumption through superior energy efficiency, and requires up to 16% less refrigerant. The outdoor unit efficiently extracts heat from the air, even in extreme temperatures as low as -25°C. Additionally, a WLAN cartridge is included for enhanced connectivity and control.

For more specific details, contact Oceanair for compatibility and suitability advice.

  • Includes W-LAN cartridge for connectivity
  • Operates effectively in outdoor temperatures as low as -25°C
  • Uses R-32 refrigerant, reducing environmental impact by 68% compared to R-410A, with lower energy consumption and a 16% smaller refrigerant charge
  • Control from anywhere with a smartphone or device with Onecta app (optional)

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate 42 m³/min
Brand Daikin
Colour Ivory White
Compatible with Compatible with Daikin Altherma 3 EHBH08E6V Indoor Units. Contact Oceanair for more details.
COP* 4.85
Energy Rating A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 15.9mm
IP Class IPX4
Liquid Pipe Size 6mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ERGA06EVA
Nom. Heating Capacity 6.0kW
Operating Ambient Temperature Range (Cooling) 10°C to 43°C
Operating Ambient Temperature Range (Heating) -25°C to 25°C
Operating Ambient Temperature Range (Hot Water) -25°C to 25°C
Phrase Single Phase
Power Voltage Supply 230V, 50Hz
Product Depth 388mm
Product Height 740mm
Product Width 884mm
Range Description Daikin Altherma 3 Split Air Source Heat Pumps Systems
Refrigerant Type R32
SCOP* 3.25
Sound Power Level 60 dBA
Sound Pressure Level 47 dBA
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for Domestic Use. Suitable for Domestic Air Source Heat Pump Systems.
Type Air Source Heat Pump Outdoor Unit
Wi-Fi Enabled WLAN Cartridge Included
* Efficiency Data Notes cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C)
