Product code: H000011

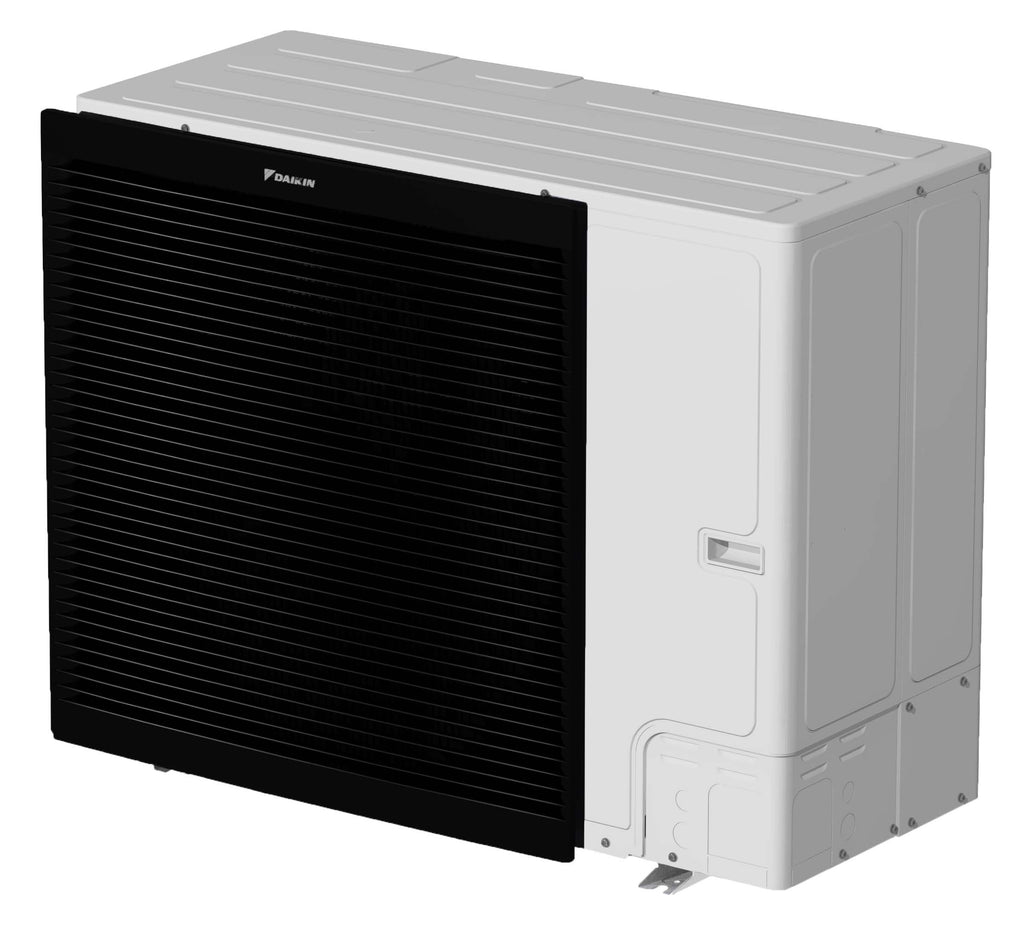

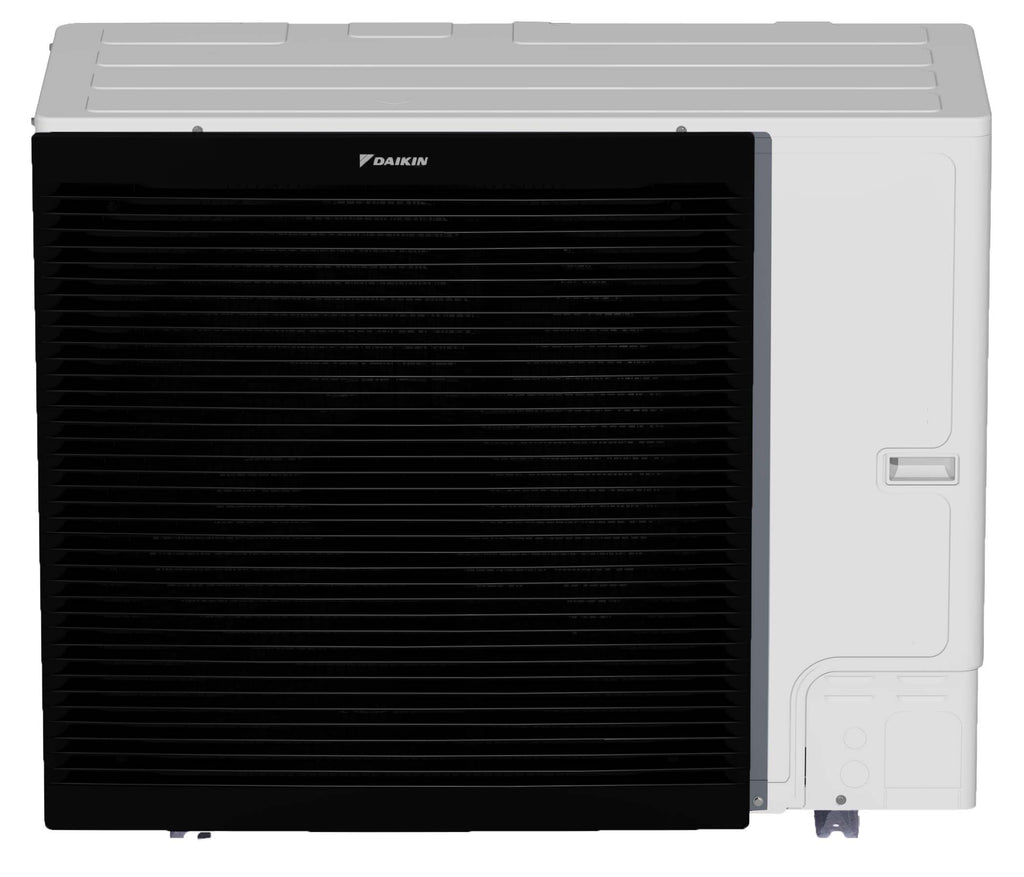

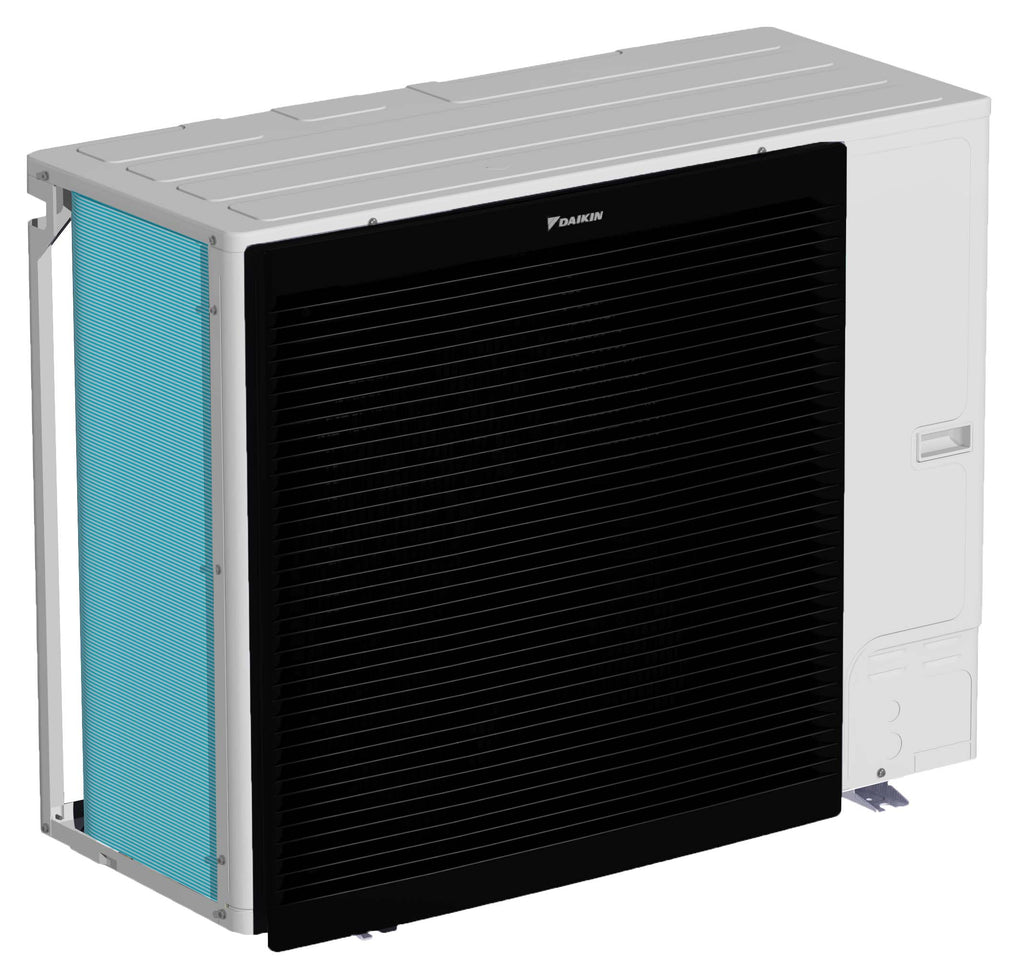

Daikin Altherma 3 R ERLA14DV3 Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 14kW

Daikin Altherma 3 R ERLA14DV3 Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 14kW
Daikin Altherma 3 R ERLA14DV3 Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 14kW
Daikin Altherma 3 R ERLA14DV3 Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 14kW
Daikin Altherma 3 R ERLA14DV3 Low Temperature Split Heat Pump Outdoor Unit 1Ph R32 14kW

Incorporating R-32 Bluevolution technology, this system reduces environmental impact by 68% compared to R-410A, achieves lower energy consumption through superior energy efficiency, and requires up to 16% less refrigerant ...

Read more
  • Suitable for split air source heat pump systems
  • W-LAN cartridge and adapter available as an option
  • Stylish black grille to hide fan from view
  • Operates effectively in outdoor temperatures as low as -25°C
  • Uses R-32 refrigerant, reducing environmental impact by 68% compared to R-410A, with lower energy consumption and up to a 16% smaller refrigerant charge
A++
£3,636.94 excl. VAT
£4,364.33inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Incorporating R-32 Bluevolution technology, this system reduces environmental impact by 68% compared to R-410A, achieves lower energy consumption through superior energy efficiency, and requires up to 16% less refrigerant. The outdoor unit efficiently extracts heat from the air, even in extreme temperatures as low as -25°C.

For more specific details, contact Oceanair for compatibility and suitability advice.

  • Suitable for split air source heat pump systems
  • W-LAN cartridge and adapter available as an option
  • Stylish black grille to hide fan from view
  • Operates effectively in outdoor temperatures as low as -25°C
  • Uses R-32 refrigerant, reducing environmental impact by 68% compared to R-410A, with lower energy consumption and up to a 16% smaller refrigerant charge
  • Control from anywhere with a smartphone or device with Onecta app (optional)
  • Control by voice (optional extra)

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate 70.4 m³/min (heating)
Brand Daikin
Colour White & Black
Compatible with Compatible with Daikin Altherma 3 EBVH16SU23D6V Indoor Units. Contact Oceanair for more details.
COP* 4.87
Energy Rating A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 15.9mm
Liquid Pipe Size 9.50mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ERLA14DV3
Nom. Heating Capacity 12.0kW
Operating Ambient Temperature Range (Cooling) 10°C to 43°C
Operating Ambient Temperature Range (Heating) -25°C to 25°C
Operating Ambient Temperature Range (Hot Water) -25°C to 25°C
Phrase Single Phase
Power Voltage Supply 230V, 50Hz
Product Depth 460mm
Product Height 870mm
Product Width 1100mm
Range Description Daikin Altherma 3 Split Air Source Heat Pumps Systems
Refrigerant Type R32
SCOP* 3.22
Sound Power Level 62 dBA
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for Domestic Use. Suitable for Domestic Air Source Heat Pump Systems.
Type Air Source Heat Pump Outdoor Unit
Wi-Fi Enabled Wi-Fi Available with WLAN adapter (sold separately)
* Efficiency Data Notes cooling Ta 35°C - LWE 18°C (DT = 5°C); heating Ta DB/WB 7°C/6°C - LWC 35°C (DT = 5°C)

Visit your local branch or contact us for more information.
