Daikin RYYQ-U VRV IV+ Heat Pump with Continuous Heating 22.4kW – 150.0kW
VRV IV+Product code: RYYQ-U

Daikin RYYQ-U VRV IV+ Heat Pump with Continuous Heating 22.4kW – 150.0kW

Daikin's optimum solution with top comfort

Daikin's new VRV IV⁺ systems raised market standards for climate comfort and performance. Total design simplicity offers rapid installation, full flexibility as well as absolute efficiency and comfort.

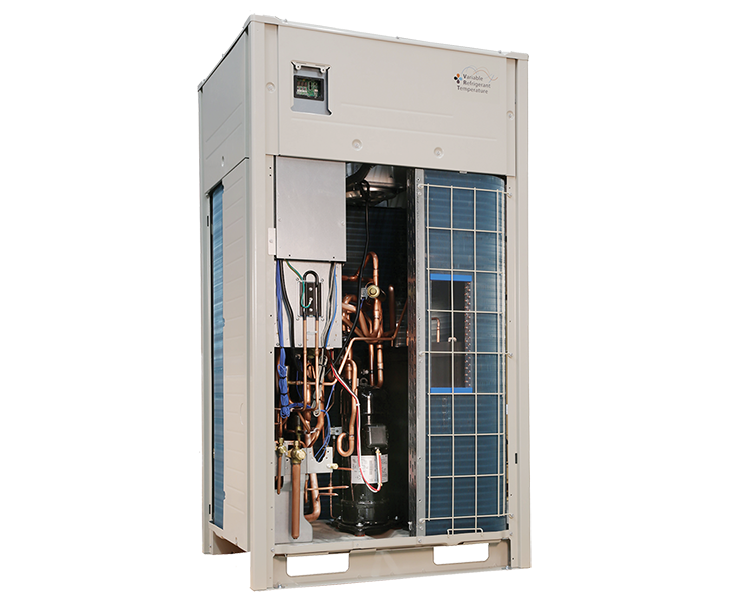

Key features

DC fan motor

DC fan motor

  • Increases efficiency.
  • Larger diameter of the rotor results in great force using the same magnetic field.
  • Improved control results in more fan steps that match the actual capacity.

Gas-cooled PCB

Gas-cooled PCB

  • Reliable cooling is not influenced by ambient temperatures.
  • A smaller switchbox creates a smoother airflow through the heat exchanger.

4-sided heat exchanger

4-sided heat exchanger

  • A 50% increase in the heat exchange surface (235m2) increases efficiency by up to 30%.

Newly developed compressor

Newly developed compressor

  • Full inverter enables Variable Refrigerant Temperature and low start-up currents.
  • Reluctance brushless DC motor increases efficiency when compared to AC motors by using simultaneous normal and reluctance torque.
  • J-type 6-pole motor has a 50% stronger magnetic force and higher rotation efficiency.
  • New compressor material is stronger and increases the compression volume by up to 50%.

Daikin RYYQ-U VRV IV+ Heat Pump with Continuous Heating 22.4kW – 150.0kW

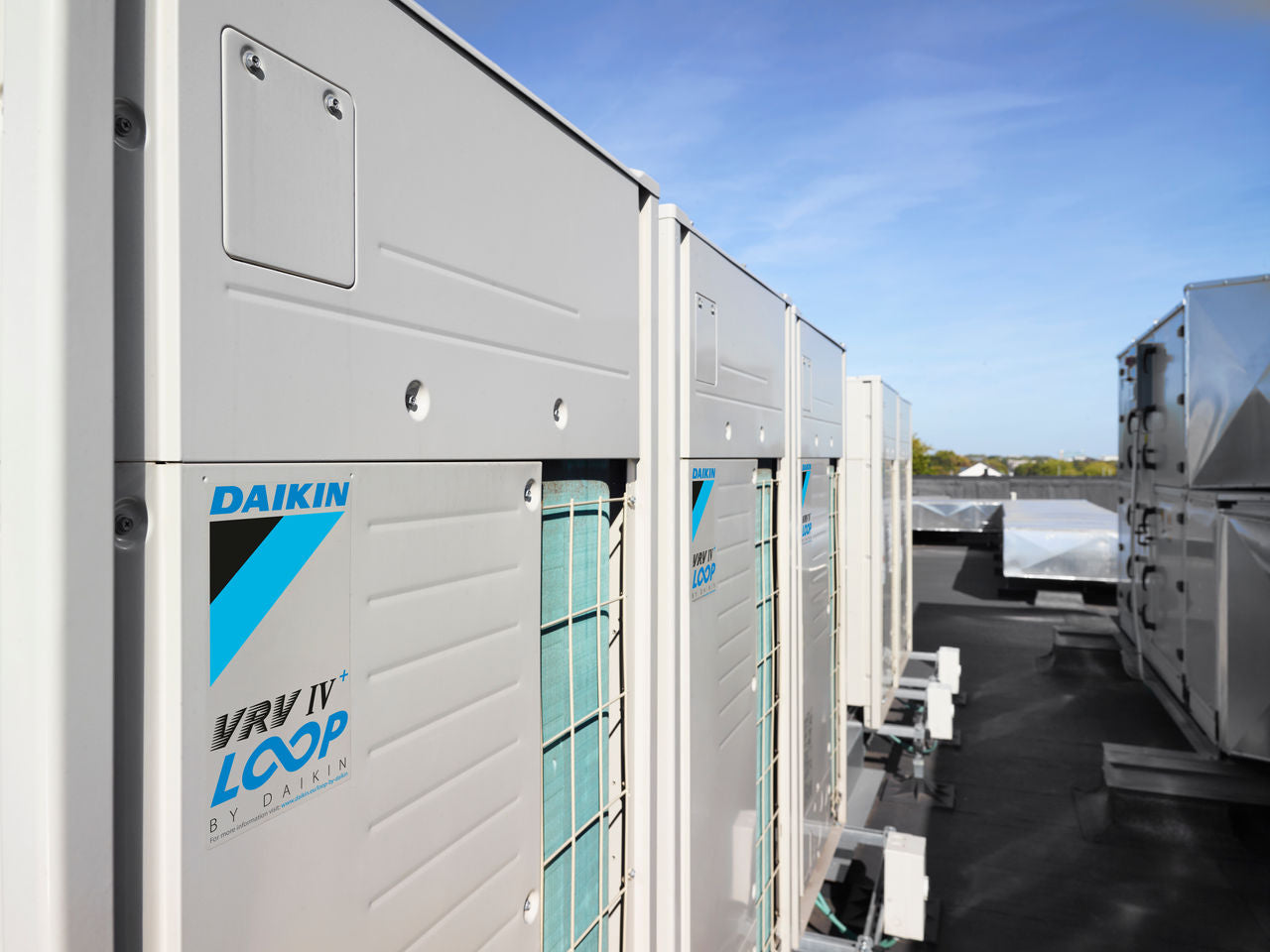

VRV IV+ - RYYQ-U units on top of roof

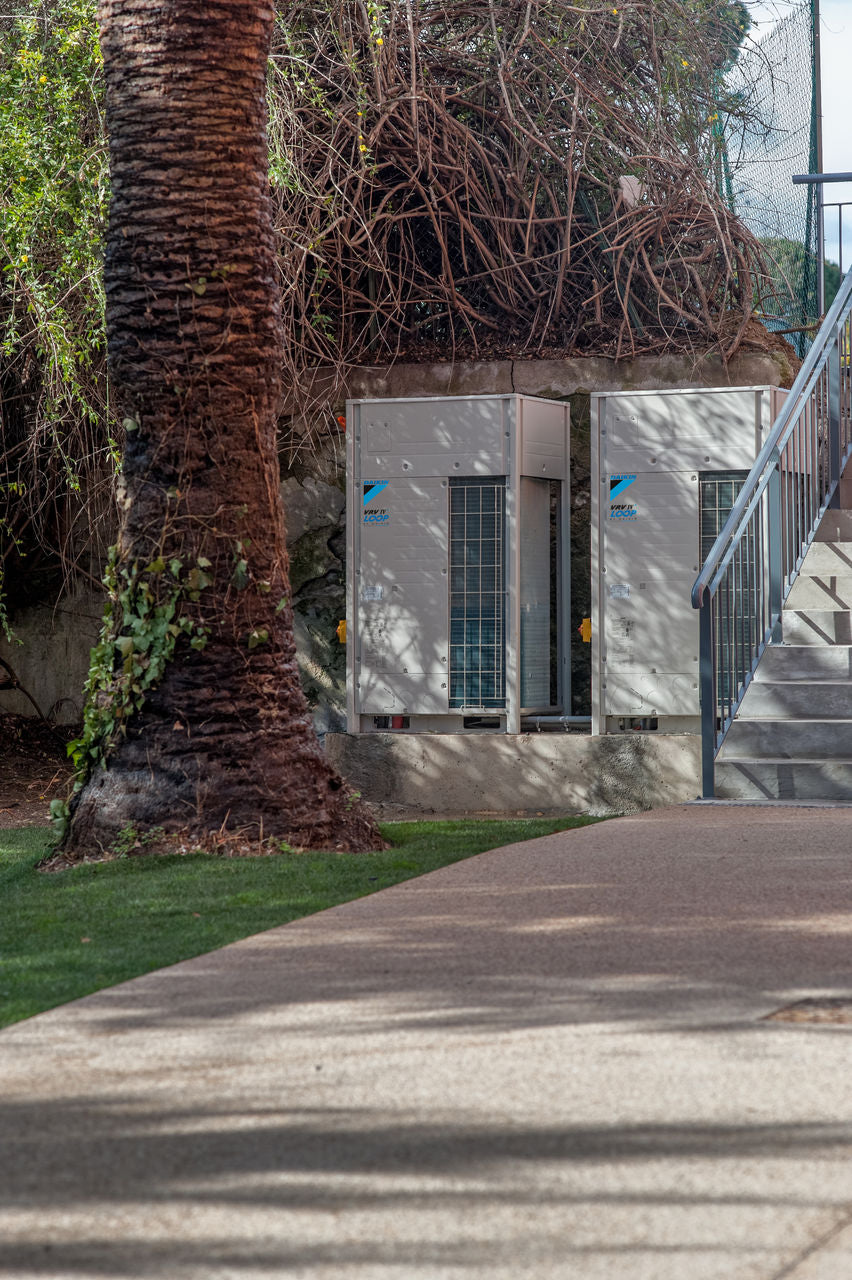

VRV IV+ - RYYQ-U daikin in garden
Daikin RYYQ-U VRV IV+ Heat Pump with Continuous Heating 22.4kW – 150.0kW

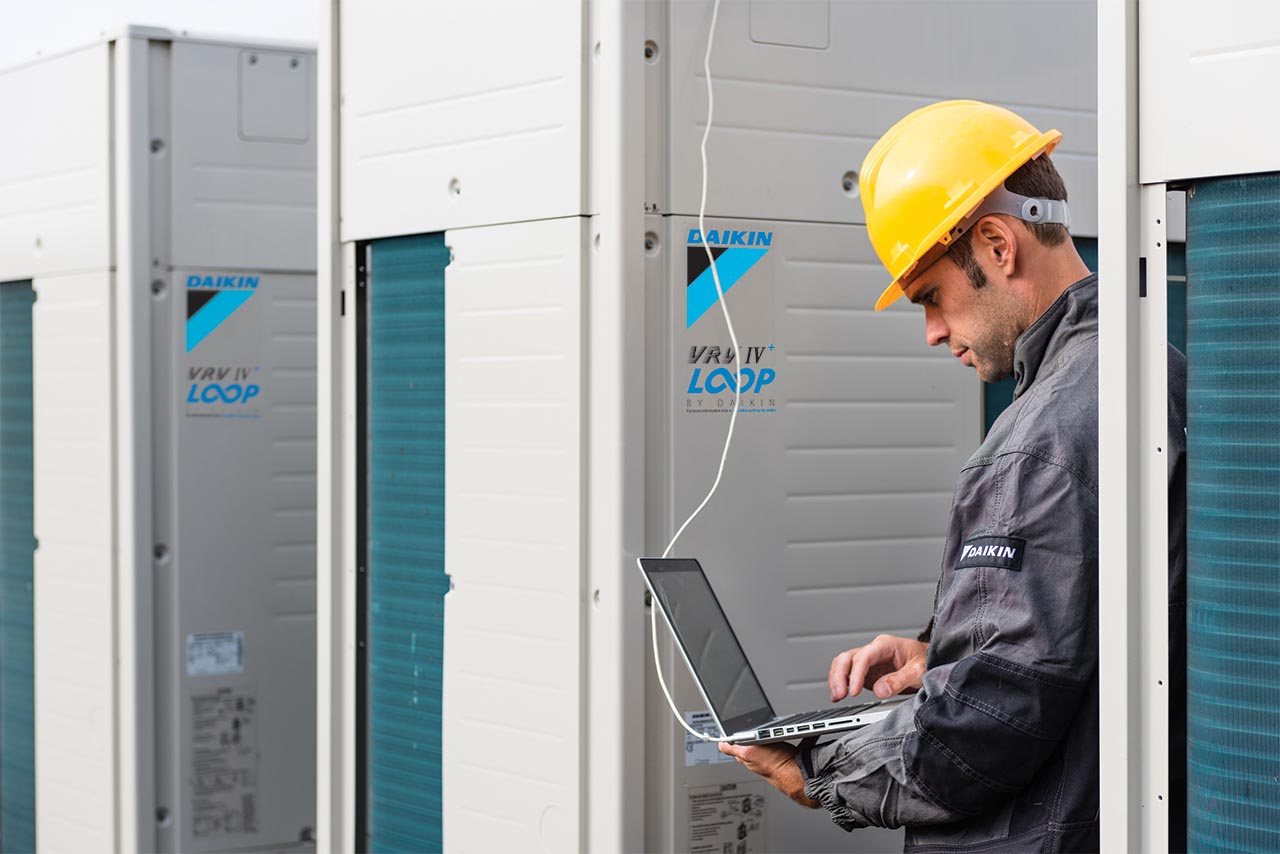

Daikin VRV IV+ - RYYQ-U units with install looking at laptop

Information

Video guides offering insight in to the manufacturers product range.

Variable Refrigerant Temperature

As a unique Daikin technology, Variable Refrigerant Temperature continuously adjusts both the inverter compressor speed and the refrigerant temperature to provide the necessary capacity to meet the building load with the highest efficiency possible.

Daikin VRV IV Configurator

Each VRV IV unit comes equipped with our signature VRV configurator. This is a software solution that simplifies easy configuration and commissioning. Your installer spends less time configuring the outdoor units and it's easy to customise the settings to your building's needs.

Continuous heating on heat pump and heat recovery

Each VRV IV unit comes equipped with our signature VRV configurator. This is a software solution that simplifies easy configuration and commissioning. As an installer, you spend less time configuring the outdoor units, can manage multiple systems from different locations for key accounts and easily retrieve initial settings on the outdoor units.

Documents

PDF product guides and information.

User reference guide

Daikin's VRV IV + Heat Pump

With the release of VRV IV, we introduced three revolutionary standards in VRV technology. Customised comfort, intelligent control and increased energy efficiency, make our Daikin VRV IV heat pump the market leader in climate solutions.

Continuous heating

VRV IV continuously provides heating during the defrost cycle. Other heat pumps stop heating during the defrost cycle, but VRV IV is equipped with our unique heat-accumulating element that stores energy during the heating process. The stored energy is then used to defrost the outdoor unit, while ensuring comfort 24/7.

Variable Refrigerant Temperature

As a unique Daikin technology, Variable Refrigerant Temperature continuously adjusts both the inverter compressor speed and the refrigerant temperature to provide the necessary capacity to meet the building load with up to 28% higher seasonal efficiency. The evaporating temperature is the widest on the market (3°C to 16°C), and improves your comfort by perfectly balancing your airflow temperature.
