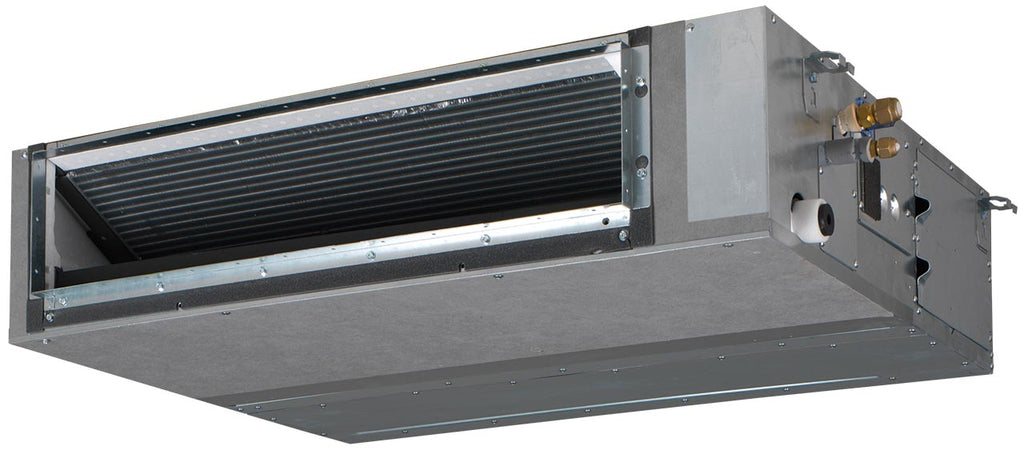

Daikin Sky Air FBA125A Medium Static Duct Indoor Unit 12.5kW

Daikin Sky Air FBA125A Medium Static Duct Indoor Unit 12.5kW
Daikin Sky Air FBA125A Medium Static Duct Indoor Unit 12.5kW
Daikin Sky Air FBA125A Medium Static Duct Indoor Unit 12.5kW
Daikin Sky Air FBA125A Medium Static Duct Indoor Unit 12.5kW

Slimmest yet most powerful medium static pressure unit on the market

Read more
  • Compact and slim design for easier installation in narrow spaces
  • Up to 150 (Pa) external static pressure
  • Optional fresh air intake (sold separately)
  • Compatible with multi split outdoor units
  • Suitable for installation in narrow ceiling ducts
  • Suitable for office and commercial environments
£1,277.55 excl. VAT
£1,533.06inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Daikin Sky Air FBA-A Medium Static Duct Indoor Unit is ideal for spaces where discreet air conditioning is desired. Featuring a slimline aesthetic, this ducted indoor unit can be concealed in the ceiling, showing only the suction and discharge grilles. It can easily be installed above a ceiling, giving you hidden temperature control. The Daikin air conditioning system features a quiet 3DB DC inverter swing compressor that reduces noise. The DC fan motor and drain pump also reduce energy consumption. Its compact size allows for better performance and efficient heating even in low outside temperatures. Option for smartphone control (Onecta app) with WLAN adapter, sold separately.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Compact and slim design for easier installation in narrow spaces
  • Up to 150 (Pa) external static pressure
  • Optional fresh air intake (sold separately)
  • Compatible with multi split outdoor units
  • Suitable for installation in narrow ceiling ducts
  • Suitable for office and commercial environments
  • Includes Drain Pump Kit to help remove condensation from the indoor unit
  • Multi zoning feature for ultimate comfort and efficiency with up to 6 climate zones
  • Whisper quiet operation
  • Unified indoor unit range for R-32 and R-410A
  • Connect up to 5 indoor units to a single outdoor unit, even with different capacities
  • Energy saving home leave operation keeps the temperature at your desired level when you're not there
  • Effortless heating and cooling comfort with auto changeover feature



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 34 m³/min
Brand Daikin
Colour Grey
Compatible with Compatible with Various Split Outdoor Units. Compatible with AZAS-M/R Multi Split Outdoor Unit. Compatible with Madoka BRC1H52W wired remote control. Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No FBA125A
Nom. Cooling Capacity 12.1kW
Nom. Heating Capacity 13.5kW
Phrase Single Phase
Power Rating (Watts kW) 12.1kW
Product Depth 800mm
Product Height 245mm
Product Width 1400mm
Range Description Daikin Sky Air FBA-A
Refrigerant Type R32 / R410A
Remote Controller Included No Controller Supplied. Please Order Separately.
SCOP* 3.55
SEER* 4.85
Sound Pressure Level 37 dBA
Static Pressure Range (Pa) 50 to 150
System Suitability Suitable for Commercial Heating Systems.
Type Medium Static Pressure Ducted Indoor Unit
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.
