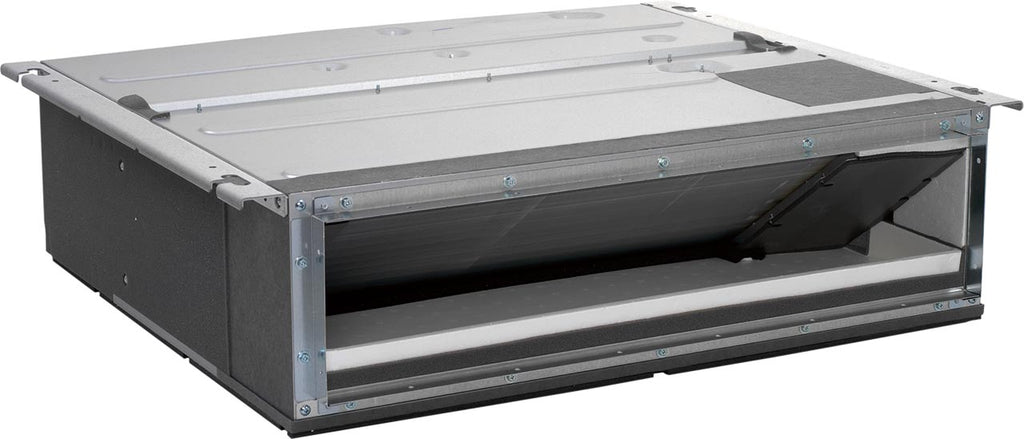

Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW

Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW
Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW
Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW
Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW
Daikin Sky Air FDXM25F9 Slim Duct Indoor Unit 2.5kW

Compact concealed ceiling unit, with a height of only 200mm

Read more
  • Compact design with height of only 200mm, ideal for narrow spaces
  • Compatible with various Daikin split air conditioning outdoor units
  • Compatible with voice command via Amazon Alexa or Google Assistant for main functions control (optional extra)
  • External static pressure of up to 40Pa
  • Suitable for use with split and multi split air conditioning systems
£414.80 excl. VAT
£497.76inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The suction and discharge grilles are the only visible parts of the compact Daikin Slim Duct 200mm ceiling unit, which can be easily mounted in a 240mm ceiling void. The optional Onecta app allows for control of indoor climate from anywhere, via local network or internet. Regular filter cleaning with the auto cleaning filter option ensures maximum efficiency, comfort, and reliability. The unit is suitable for use with flexible ducts of varying lengths due to its medium external static pressure capacity of up to 40Pa. The unit range is unified for R-32 and R-410A, and a multi-zoning kit allows for multiple individually-controlled climate zones to be served by one indoor unit. Main functions, such as set point, operation mode, and fan speed, can be controlled through voice commands using Amazon Alexa or Google Assistant. Additionally, the DC fan motor ensures low energy consumption.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Compact design with height of only 200mm, ideal for narrow spaces
  • Compatible with various Daikin split air conditioning outdoor units
  • Compatible with voice command via Amazon Alexa or Google Assistant for main functions control (optional extra)
  • External static pressure of up to 40Pa
  • Suitable for use with split and multi split air conditioning systems
  • Incorporates R-32 Bluevolution technology, reducing environmental impact by 68% compared to R-410A, enhancing energy efficiency, lowering energy consumption, and reducing refrigerant charge by up to 16%
  • Seamlessly concealed in the ceiling, with only the suction and discharge grilles visible
  • Suitable for infrastructure cooling
  • Compatible with both R-32 and R-410A refrigerants within a unified indoor unit range
  • Energy saving home leave operation keeps the temperature at your desired level when you're not there
  • Effortless heating and cooling comfort with auto changeover feature
  • Compatible with VRV for residential application with up to 9 indoor units



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 8.7 m³/min
Brand Daikin
Colour Grey
Compatible with Compatible with Various Split Outdoor Units. Compatible with RXM-R Single Split Outdoor Unit. Compatible with Madoka BRC1H52W wired remote control. Contact Oceanair for more details.
Energy Rating (Cooling)* A+
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 9.5mm
Liquid Pipe Size 6.35mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No FDXM25F9
Nom. Cooling Capacity 2.4kW
Nom. Heating Capacity 3.2kW
Phrase Single Phase
Power Rating (Watts kW) 2.4kW
Power Source 220-240V, 50/60Hz
Product Depth 620mm
Product Height 200mm
Product Width 750mm
Range Description Daikin Sky Air FDXM-F9
Refrigerant Type R32 / R410A
Remote Controller Included No Controller Supplied. Please Order Separately.
SCOP* 4.24
SEER* 5.68
Sound Pressure Level 35 dBA
Static Pressure Range (Pa) Nominal 30Pa
System Suitability Suitable for Commercial Heating Systems.
Type Slim Duct AC Unit
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)
Works with Amazon Alexa Works with Amazon Alexa (option sold separately)
Works with Google Home Works with Google Home (option sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.
