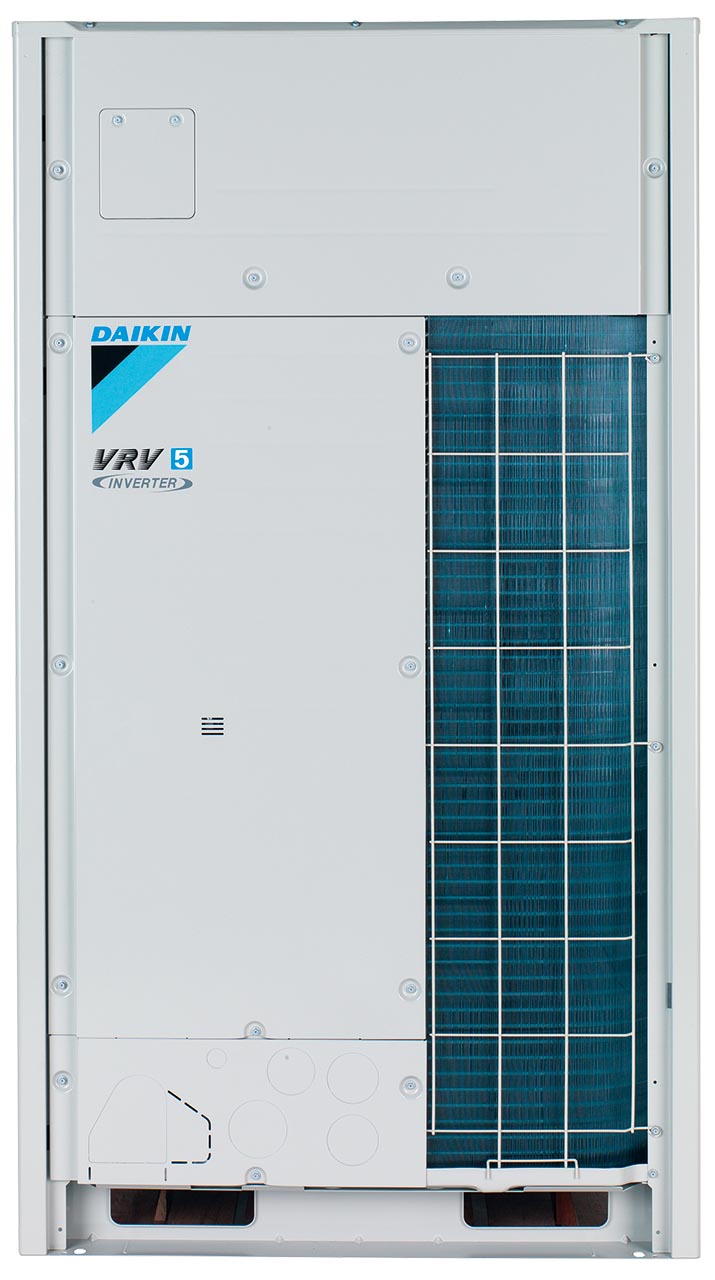

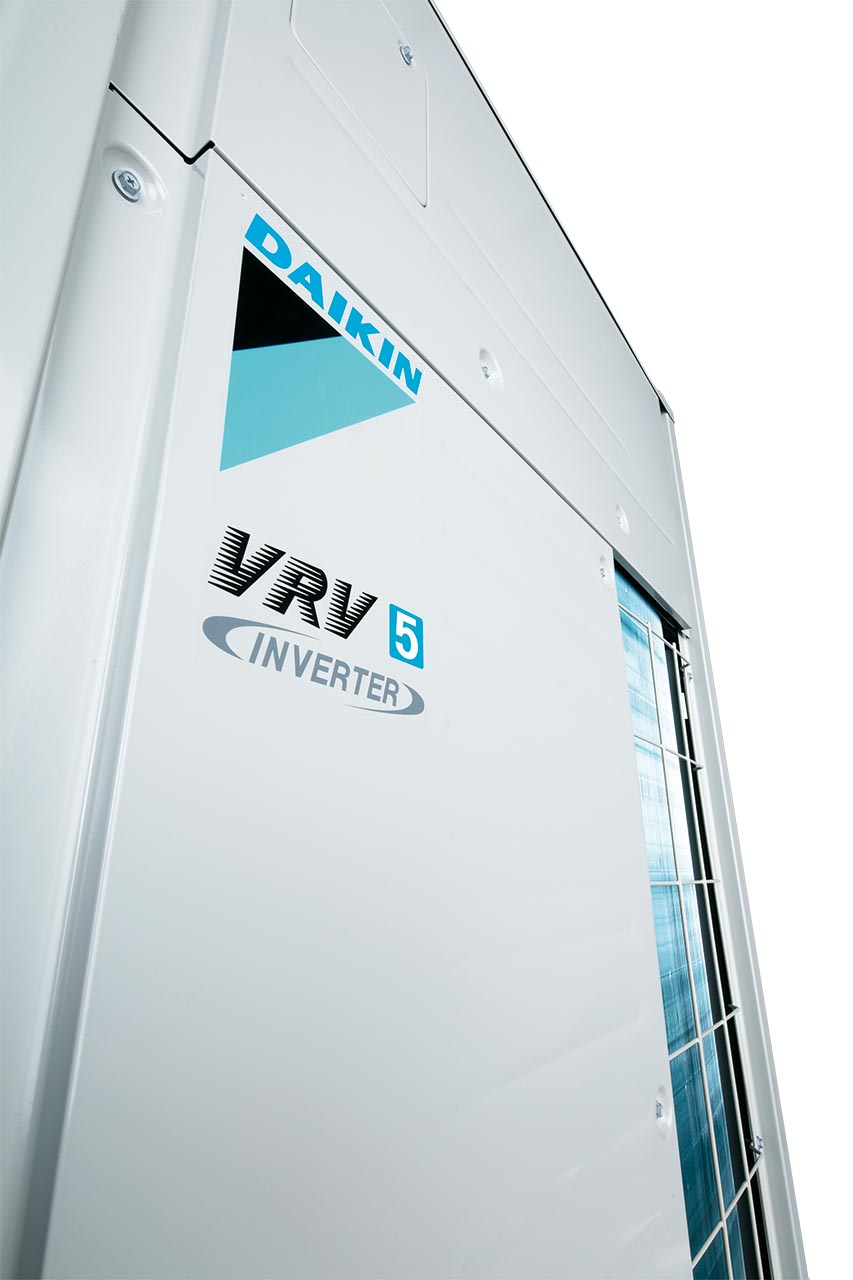

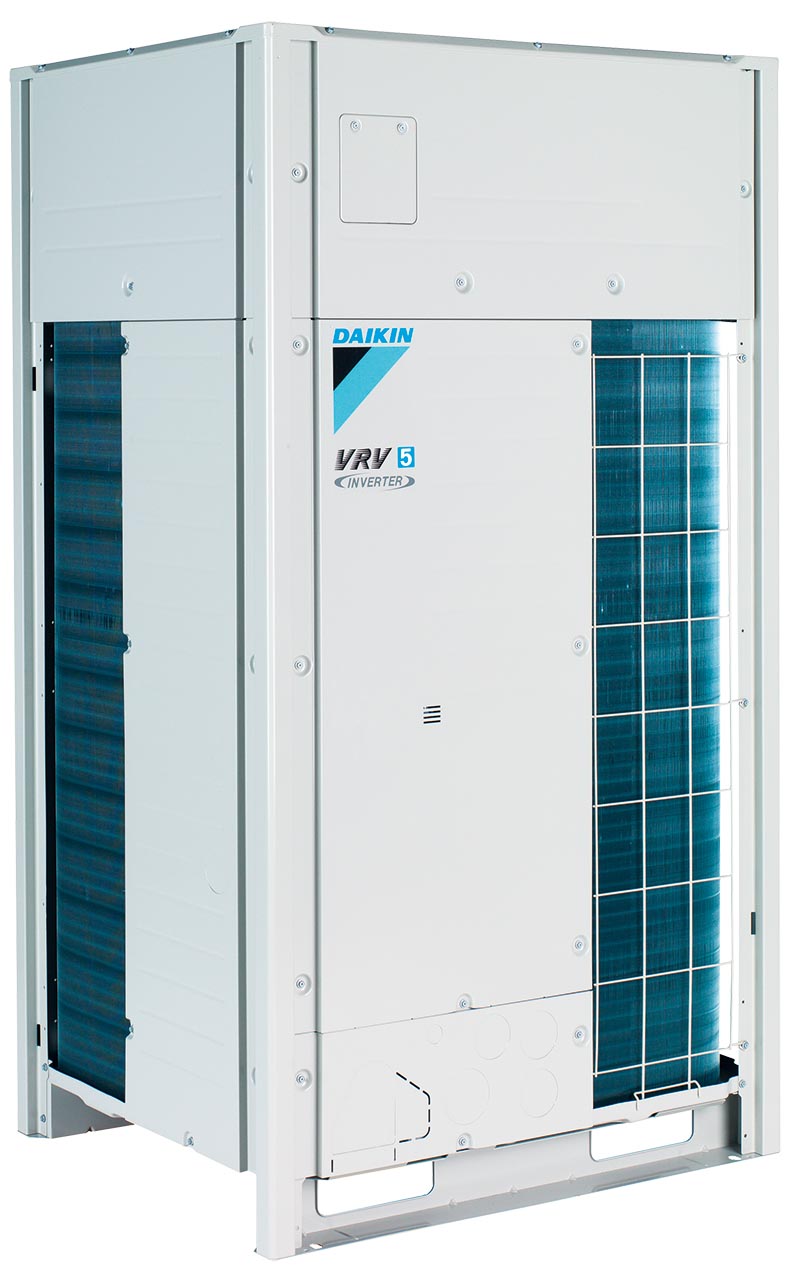

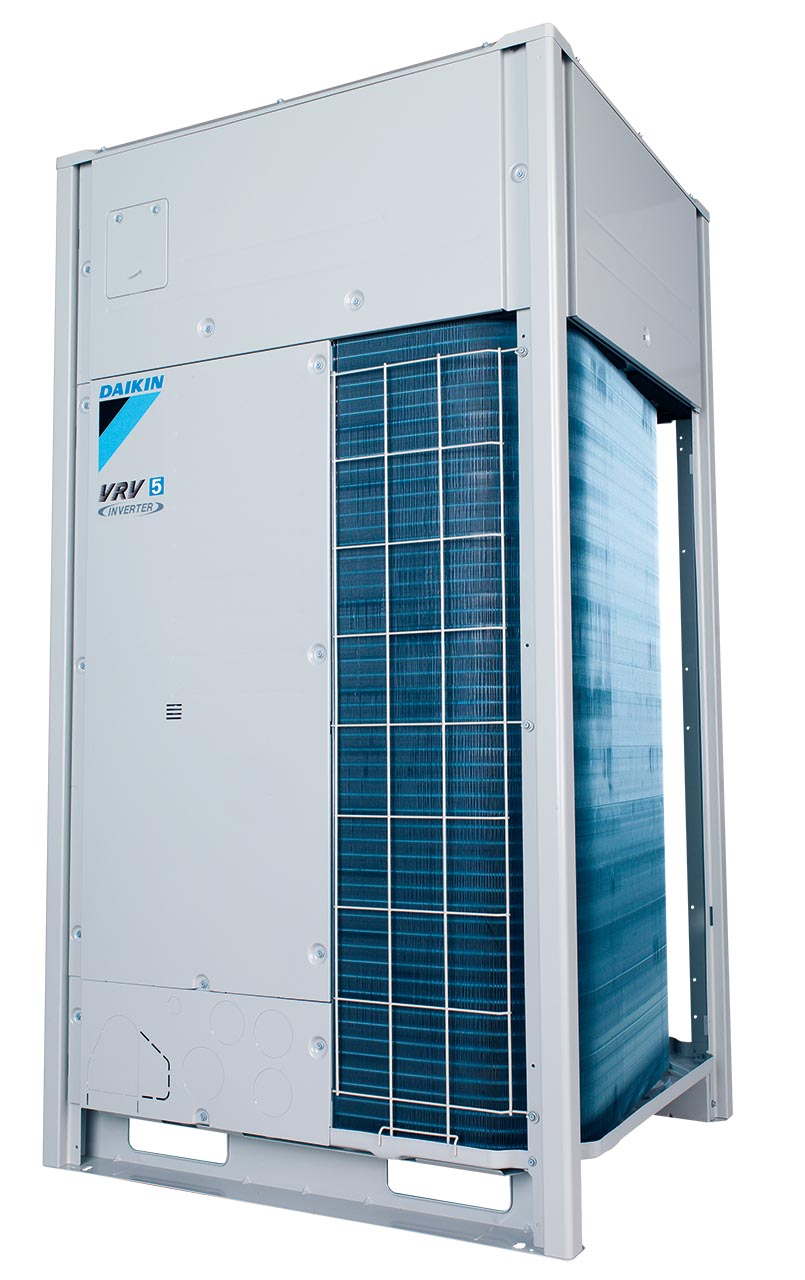

Daikin VRV 5 - REYA-A Heat Pump
VRV 5Product code: REYA-A

Daikin VRV 5 - REYA-A Heat Pump

The sustainability champion

Variable refrigerant temperature. The intelligent systems ensures highest energy savings with additional comfort to better suit application requirements.

Key features

Reduced CO2 equivalent

Reduced CO2 equivalent

Thanks to the use of lower GWP R-32 refrigerant and lower refrigerant charge

Tackle any room application

Tackle any room application

Thanks to Shîrudo technology, Specially designed indoor units for R-32, ensuring low sound and maximum efficiency.

Simultaneous cooling and heating

Simultaneous cooling and heating

Ensure optimal personal comfort for guests and tenants.

"Free" heat through efficient 3-pipe heat recovery, transferring heat from areas needing cooling to areas requiring heat and vice versa.

Incorporates VRV standards & technologies: Variable Refrigerant Temperature, continuous heating, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor

Daikin VRV 5 - REYA-A Heat Pump
Daikin VRV 5 - REYA-A Heat Pump
Daikin VRV 5 - REYA-A Heat Pump
Daikin VRV 5 - REYA-A Heat Pump
Daikin VRV 5 - REYA-A Heat Pump
Reduced CO2 equivalent

Reduced CO2 equivalent

Thanks to the use of lower GWP R-32 refrigerant and lower refrigerant charge

Tackle any room application

Tackle any room application

Thanks to Shîrudo technology, Specially designed indoor units for R-32, ensuring low sound and maximum efficiency.

Simultaneous cooling and heating

Simultaneous cooling and heating

Ensure optimal personal comfort for guests and tenants.

"Free" heat through efficient 3-pipe heat recovery, transferring heat from areas needing cooling to areas requiring heat and vice versa.

Incorporates VRV standards & technologies: Variable Refrigerant Temperature, continuous heating, VRV configurator, 7 segment display and full inverter compressors, 4-side heat exchanger, refrigerant cooled PCB, new DC fan motor

Information

Video guides offering insight in to the manufacturers product range.

VRV 5 Heat Recovery benefits and features explained

Daikin's new VRV5 heat recovery system is designed to help decarbonize commercial buildings. It uses R32 refrigerant, which has a lower global warming potential than R410A, and offers top sustainability through market-leading seasonal efficiency and efficient three-pipe heat recovery. The system also features fast installation, ergonomic serviceability, and a wide range of indoor and ventilation units.

Documents

PDF product guides and information.

Installer and user reference guide

Daikins's VRV5 heat recovery system

Purpose-built to support the decarbonisation of commercial buildings

Decarbonisation of buildings made easy

It’s in our DNA to provide safe, healthy and comfortable spaces throughout the building life cycle with world-leading technology.

Driven by our dedication to achieve net zero CO2 emissions by 2050, we work together with our partners and customers in helping to create a world with healthier indoor air and minimal environmental impact.

Flexible heat pump technology to fit any building, anywhere

  • Unmatched outdoor unit capacity from 12.1 up to 87.5 kW
  • Extensive piping lengths and heights up to 1,000m total length
  • Quiet operation via 5 low sound steps, down to 39 dB(A) sound pressure

Significantly reduces the CO2 footprint of your building

  • Maximising operational efficiency in real life conditions with ηs,c up to 298.3%
  • Specifically built for lower GWP refrigerant R-32, reducing global warming impact of the refrigerant with 71% compared to R-410A
  • Single component refrigerant, easy to re-use and recycle

Shîrudo Technology provides peace of mind

  • Easy design and installation of R-32 VRV systems without any additional studies or field supplied equipment
  • Includes all refrigerant control measures, making it the most flexible to design and quick to install
  • 3rd party CB certification according to the latest product standard: IEC60335-2-40
