Product code: H000371

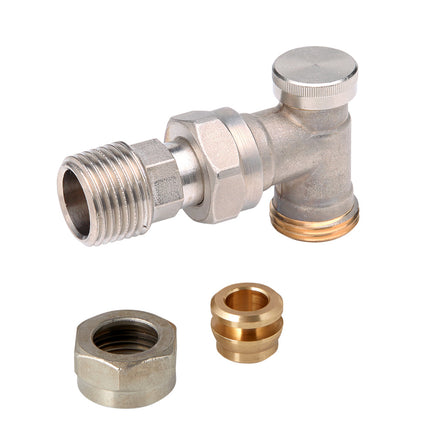

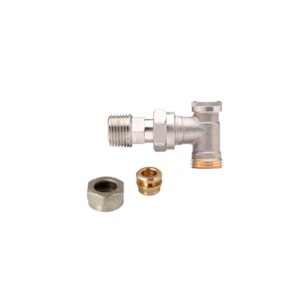

Danfoss RLV-D Compression Fit Lockshield Valve 8/10mm 003L0204
The RLV-D is a lockshield valve designed for use in domestic heating systems and meets the requirements in BS2767-10.
Read more- Suitable for new builds, system upgrades and repairs
- Compatible with RAS-D2 and RAD-C2 radiator thermostats
- Suitable for use in domestic heating systems
- Matching valve body available
- Reliable and durable compression fitting
- Includes 10mm fittings
This product will be available soon, please contact us for more information on this product.
Description
The Danfoss RLV-D valve boasts a nickel-plated finish and durable construction, with a standard lockshield design and internal threaded connection. Offering a 1 year warranty, it is fully interchangeable with the RLV-D range and fits perfectly with the RAS-D2 and RAS-C2 radiator thermostat combi packs for effortless installation. Sizes include Rp 1/2" and 8/10mm and the fittings are fully interchangeable for maximum convenience.
- Suitable for new builds, system upgrades and repairs
- Compatible with RAS-D2 and RAD-C2 radiator thermostats
- Suitable for use in domestic heating systems
- Matching valve body available
- Reliable and durable compression fitting
- Includes 10mm fittings
- Interchangeable with radiator thermostat valve bodies
- Available in packs or as separate items
* See Technical Attachments for precise parameters and conditions.
Specification
Angled/Straight Connection
Angled
Brand
Danfoss
CE Standard (Tested to EN…)
BS2767-10
Colour
Nickel
Connection Type
Compression
Manufacturer Guarantee/ Manufacturer Warranty
2 Year Guarantee
Manufacturer's Model No
003L0204
Material
Nickel-Plated Brass
Max. Temperature
120°C
Max. Working Pressure
10 bar
Outlet Connection Size
1/2" BSP
Product Depth
60mm
Product Diameter
8/10mm
Product Height
30mm
Radiator Valve Type
Lockshield Valves
Range Description
Danfoss Radiator Valves
Type
Lockshield Valve
Valve/Lockshield Included
Lockshield
Valve Type
Manual
