Product code: H000313

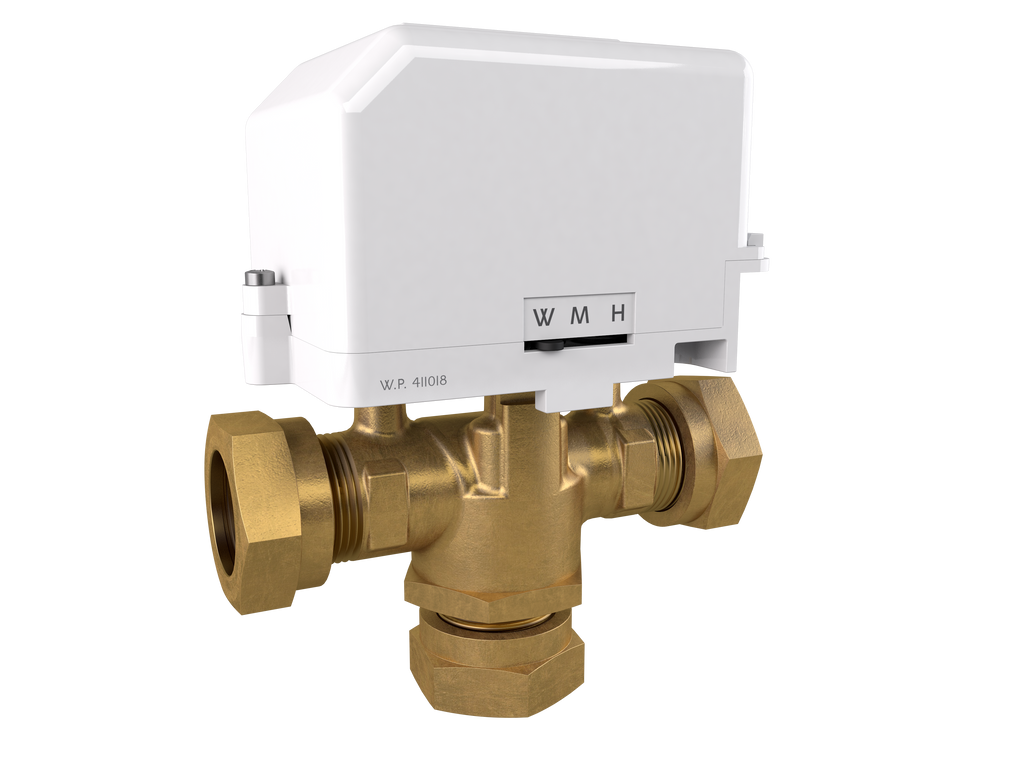

Drayton 27101 22mm 3 Port Motorised Valve Mid Position
The Drayton 3 Port Motorised Mid Position Valves are available in both 22mm and 28mm sizes. They are easily installed with "snap-on" actuators.
Read more- Includes valve indicator
- Features spring return with 100% tight shut off
- 22mm with 5 wire SPDT switch
- Replaceable actuators for ease of use
- Replaceable motors for ease of use
- Easy to remove 'snap-on' actuators
This product will be available soon, please contact us for more information on this product.
Description
The Drayton 3 Port Motorised Mid Position Valves are available in both 22mm and 28mm sizes. They are easily installed with "snap-on" actuators, come with standard wiring and dimensions, and offer a 100% tight shut-off. The 22mm model features a 5-wire SPST switch and the 28mm model has a 6-wire SPDT switch, both operating at 230V ac. and 5 watts. The actuators and motors are replaceable, and a valve indicator and spring return are also included for convenience.
- Includes valve indicator
- Features spring return with 100% tight shut off
- 22mm with 5 wire SPDT switch
- Replaceable actuators for ease of use
- Replaceable motors for ease of use
- Easy to remove 'snap-on' actuators
Specification
Brand
Drayton
Connection Size
22mm
Connection Type
Compression
Current Type
AC
Fitting Requirements
Can be Fitted by Competent DIYer
Hertz (Hz)
50Hz
Manufacturer Guarantee/ Manufacturer Warranty
1 Year Guarantee
Manufacturer's Model No
27101
Max. Load (Inductive)
1A
Max. Load (Resistive)
3A
Max. Static Pressure
8.6 bar
Motorised Valve Operation Type
Spring-Return Action
No. of Ports
3 Port
Operating Temperature Range
2 - 93°C
Override Facility
Manual Override Facility
Power Consumption
5W
Power Voltage Supply
230V
Product Depth
70mm
Product Height
120mm
Product Width
110mm
Range Description
Drayton Motorised Valves
Suitable System
Suitable for All Boiler Types
Type
Motorised Mid Position Valve
Wiring Installation
5-Wire Installation
