Product code: C000803

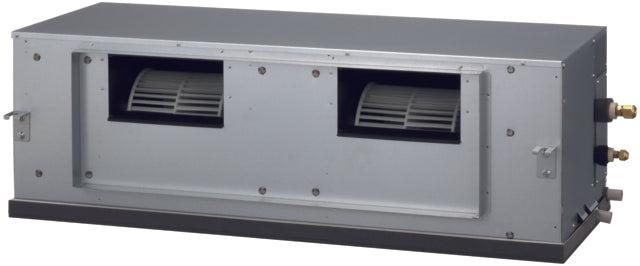

Fujitsu 15.0kW R410A High Static Duct Indoor Unit ARYG60LHTA

Efficient and compact, the Fujitsu high static pressure duct indoor units feature a smaller basic chassis size and lighter overall material weight for a simple installation in tight spaces ...

Read more
  • Split air conditioner high static duct indoor unit
  • 3 Year warranty
  • Economy operation for automatic temperature adjustment
  • High energy efficiency with DC inverter technology
  • Excludes remote controller
  • Plastic case and fan for low noise operation
£1,196.40 excl. VAT
£1,435.68inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Efficient and compact, the Fujitsu high static pressure duct indoor units feature a smaller basic chassis size and lighter overall material weight for a simple installation in tight spaces. This durable unit has a plastic case and plastic fan, paired with slanted top corners to help minimise turbulent airflow and lower noise during operation.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Split air conditioner high static duct indoor unit
  • 3 Year warranty
  • Economy operation for automatic temperature adjustment
  • High energy efficiency with DC inverter technology
  • Excludes remote controller
  • Plastic case and fan for low noise operation
  • 60 Pa Standard Static Pressure
  • Compatible with single split outdoor units
  • Easy installation as compact and lightweight
  • Suits high static pressure of up to 250 Pa
  • Weekly timer and set temperature for flexible control
  • Horizontally mounted
  • Available with a range of options (sold separately)
  • Links with central control systems, such as MODBUS, KNX interfaces (option sold separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 59.1 m³/min
Brand Fujitsu
Colour Grey
Compatible with Compatible with Various Split Outdoor Units. Compatible with AOYG60LATT Split Outdoor Unit. Contact Oceanair for more details.
COP* 3.5
EER* 3.19
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 5/8"
Liquid Pipe Size 3/8"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ARYG60LHTA
Nom. Cooling Capacity 15.0kW
Nom. Heating Capacity 18.0kW
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Power Rating (Watts kW) 15.0kW
Power Source From Outdoor Unit
Product Depth 490mm
Product Height 425mm
Product Width 1250mm
Range Description Fujitsu Standard Range
Refrigerant Type R410A
Remote Controller Included No Controller Supplied. Please Order Separately.
SCOP* 3.5
SEER* 4.86
Sound Pressure Level 45 dBA
Static Pressure Range (Pa) 60 to 260
System Suitability Suitable for Commercial Heating Systems.
Type High Static Pressure Ducted Indoor Unit
Wi-Fi Enabled Wireless LAN adapter available (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.
