Product code: C000804

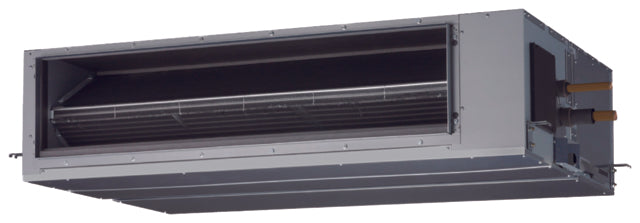

Fujitsu 19.0kW R410A High Static Big Duct Indoor Unit ARYG72LHTA

Efficient and compact, the Fujitsu high static pressure big duct indoor units are splitable into a fan unit and a heat exchanger unit so that installation is easier ...

Read more
  • Split air conditioner high static big duct indoor unit
  • 3 Year warranty
  • Splits into a fan unit and a heat exchanger unit for easier installation
  • Automatic airflow adjustment ability for faster installation
  • Economy operation for automatic temperature adjustment
  • High energy efficiency with DC inverter technology
£1,341.60 excl. VAT
£1,609.92inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Efficient and compact, the Fujitsu high static pressure big duct indoor units are splitable into a fan unit and a heat exchanger unit so that installation is easier. This durable unit boasts a quiet operation through the combination of an air stabiliser, a V-shaped heat exchanger, and a high-efficiency DC fan motor. A wired remote controller is included with the unit.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Split air conditioner high static big duct indoor unit
  • 3 Year warranty
  • Splits into a fan unit and a heat exchanger unit for easier installation
  • Automatic airflow adjustment ability for faster installation
  • Economy operation for automatic temperature adjustment
  • High energy efficiency with DC inverter technology
  • Quiet operation with V-shaped heat exchanger
  • 72 Pa Standard Static Pressure
  • Compatible with multi split outdoor units
  • Easy installation as compact and lightweight
  • Suits high static pressure of up to 260 Pa
  • Weekly timer and set temperature for flexible control
  • Horizontally mounted
  • Available with a range of options (sold separately)
  • Links with central control systems, such as MODBUS, KNX interfaces (option sold separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 71.6 m³/min
Brand Fujitsu
Colour Grey
Compatible with Compatible with Various Split Outdoor Units. Compatible with AOYG72LRLA Multi Split Outdoor Unit. Contact Oceanair for more details.
COP* 3.4
EER* 2.94
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 1"
Liquid Pipe Size 1/2"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ARYG72LHTA
Nom. Cooling Capacity 19.0kW
Nom. Heating Capacity 22.4kW
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -20°CDB to 24°CDB
Phrase Single Phase
Power Rating (Watts kW) 19.0kW
Power Source 230V, 50Hz
Product Depth 850mm
Product Height 360mm
Product Width 1400mm
Range Description Fujitsu Standard Range
Refrigerant Type R410A
Remote Controller Included Wired Remote Controller Supplied with Unit
SCOP* 3.94
SEER* 5.22
Sound Pressure Level 46 dBA
Static Pressure Range (Pa) 50 to 150
System Suitability Suitable for Commercial Heating Systems.
Type High Static Pressure Big Ducted Indoor Unit
Wi-Fi Enabled Wireless LAN adapter available (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.
