Product code: C000782

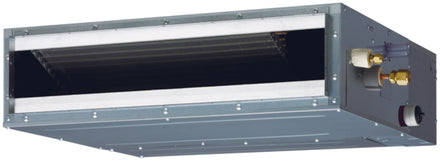

Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit ARXG09KLLAP

Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit ARXG09KLLAP
Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit ARXG09KLLAP

The Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit offers exceptional efficiency and affordability ...

Read more
  • 3 Year warranty
  • 25 Pa standard static pressure
  • Suitable for use with Fujitsu multi split air conditioning systems
  • Suitable for use with Fujitsu split air conditioning systems
  • Slim design with built-in drain pump
  • Suitable for narrow ceilings
£367.80 excl. VAT
£441.36inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Fujitsu 2.5kW R32 Split Air Conditioner Slim Ducted Indoor Unit offers exceptional efficiency and affordability. Fujitsu's duct system is ideal for concealing air conditioning units in designated areas, such as ceilings, for discreet temperature control. Every model boasts Fujitsu's heat pump inverter technology, ensuring highly efficient operation and reduced electricity consumption.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • 25 Pa standard static pressure
  • Suitable for use with Fujitsu multi split air conditioning systems
  • Suitable for use with Fujitsu split air conditioning systems
  • Slim design with built-in drain pump
  • Suitable for narrow ceilings
  • Weekly timer and set temperature for flexible control
  • Adjustable static pressure with DC fan motor
  • Horizontally mounted
  • Low ambient operation
  • Available with a range of options (sold separately) including fresh air intake
  • Auto louvre grille kit available for more comfortable airflow
  • Optional link up with a variety of central control systems such as MODBUS, KNX interfaces (available separately)
  • Reduces impact of climate change with R32 refrigerant



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 10 m³/min
Brand Fujitsu
Colour Grey
Compatible with Compatible with Various Split/ Multi Split Outdoor Units. Compatible with AOYG09KATA Economy Outdoor Unit Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 3/8"
Liquid Pipe Size 1/4"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ARXG09KLLAP
Nom. Cooling Capacity 2.5kW
Nom. Heating Capacity 3.2kW
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Power Rating (Watts kW) 2.5kW
Power Source From Outdoor Unit
Product Depth 620mm
Product Height 198mm
Product Width 700mm
Range Description Fujitsu Economy Range
Refrigerant Type R32
Remote Controller Included No Controller Supplied. Please Order Separately.
Sound Pressure Level 28 dBA
Static Pressure Range (Pa) 0 to 90
System Suitability Suitable for Commercial Heating Systems.
Type Slim Duct AC Unit
Wi-Fi Enabled Wireless LAN adapter available (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.
