Product code: C000792

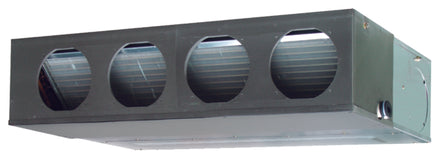

Fujitsu 6.0kW R32 Medium Static Duct Multi Split Indoor Unit ARXG22KMLB

Fujitsu 6.0kW R32 Medium Static Duct Multi Split Indoor Unit ARXG22KMLB
Fujitsu 6.0kW R32 Medium Static Duct Multi Split Indoor Unit ARXG22KMLB

Efficient and compact, the Fujitsu medium static pressure duct indoor unit features a side-mounted control box for simple installation in tight spaces ...

Read more
  • 3 Year warranty
  • Excludes filter/ spigot and remote controller
  • Easy to maintain as motor and fan are accessible
  • 35 Pa Standard Static Pressure
  • Compatible with single split outdoor units
  • Compatible with multi split outdoor units
£452.40 excl. VAT
£542.88inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Efficient and compact, the Fujitsu medium static pressure duct indoor unit features a side-mounted control box for simple installation in tight spaces. This durable unit has a two-piece bottom panel for structural integrity, and its internal fan casing is made in two pieces for easy access to the motor and fan during maintenance. Rated A+ for heating and A++ for cooling, this indoor air conditioning unit guarantees comfort and convenience.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • Excludes filter/ spigot and remote controller
  • Easy to maintain as motor and fan are accessible
  • 35 Pa Standard Static Pressure
  • Compatible with single split outdoor units
  • Compatible with multi split outdoor units
  • Compact and slim design for easier installation in narrow spaces
  • Suitable for installation in narrow ceiling ducts
  • Two-direction drain piping
  • Weekly timer and set temperature for flexible control
  • Horizontally mounted
  • Available with a range of options (sold separately) including fresh air intake
  • Links with central control systems, such as MODBUS, KNX interfaces (option sold separately)
  • Reduces impact of climate change with R32 refrigerant



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 18.3 m³/min
Brand Fujitsu
Colour Grey
Compatible with Compatible with Various Split/ Multi Split Outdoor Units. Compatible with AOYG22KATA Single Split Outdoor Unit. Compatible with UTDLF25NA Long Life Filter Kit. Contact Oceanair for more details.
COP* 3.5
EER* 3.13
Energy Rating (Cooling)* A+
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 1/4"
Liquid Pipe Size 1/2"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No ARXG22KMLB
Nom. Cooling Capacity 6.0kW
Nom. Heating Capacity 7.0kW
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Power Rating (Watts kW) 6.0kW
Power Source From Outdoor Unit
Product Depth 700mm
Product Height 270mm
Product Width 1135mm
Range Description Fujitsu Economy Range
Refrigerant Type R32
Remote Controller Included No Controller Supplied. Please Order Separately.
SCOP* 3.8
SEER* 5.8
Sound Pressure Level 31 dBA
Static Pressure Range (Pa) 30 to 150
System Suitability Suitable for Commercial Heating Systems.
Type Medium Static Pressure Ducted Indoor Unit
Wi-Fi Enabled Wireless LAN adapter available (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.
