Product code: C000869

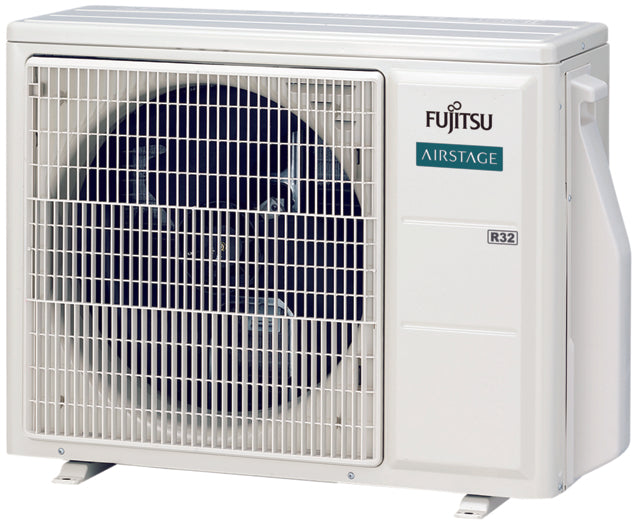

Fujitsu Airstage 6.8kW Single Split Outdoor Unit R32 Single Phase AOEG24KBTB

Fujitsu Airstage 6.8kW Single Split Outdoor Unit R32 Single Phase AOEG24KBTB
Fujitsu Airstage 6.8kW Single Split Outdoor Unit R32 Single Phase AOEG24KBTB
Fujitsu Airstage 6.8kW Single Split Outdoor Unit R32 Single Phase AOEG24KBTB
Fujitsu Airstage 6.8kW Single Split Outdoor Unit R32 Single Phase AOEG24KBTB

The Fujitsu Airstage 3.5kW Single Split Outdoor Unit Single Phase R32 features a compact design suitable for a wide range of settings ...

Read more
  • Single split condenser air conditioning outdoor unit
  • 3 Year warranty
  • Space-saving compact design
  • Compatible with environmentally-friendly R32 refrigerant
  • Single split air conditioning outdoor unit
  • Nom. cooling capacity of 3.5kW
View more details
£849.00 excl. VAT
£1,018.80inc. VAT
Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Fujitsu Airstage 3.5kW Single Split Outdoor Unit Single Phase R32 features a compact design suitable for a wide range of settings. It operates quietly, minimising disturbance to the surrounding environment. Additionally, the unit is compatible with R32 and helps reduce energy consumption, promoting efficiency while still providing effective cooling.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Single split condenser air conditioning outdoor unit
  • 3 Year warranty
  • Space-saving compact design
  • Compatible with environmentally-friendly R32 refrigerant
  • Single split air conditioning outdoor unit
  • Nom. cooling capacity of 3.5kW
  • Aluminium heat exchanger fin



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 45 m³/min
Brand Fujitsu Airstage
Colour Beige
Compatible with Compatible with ARXH24KMTAP Medium Static Pressure Duct High-Efficiency & Comfort. Compatible with ARXG24KHTAP Medium Static Pressure Duct Standard Compact Size. Compatible with ARXG24KMLA Medium Static Pressure Duct Standard. Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 1/2"
Liquid Pipe Size 1/4"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOEG24KBTB
Max. Pipe Run 25m
Nom. Cooling Capacity 6.8kW
Nom. Heating Capacity 7.5kW
No. of Indoor Units 1
Operating Temperature Range (Cooling) -10°CDB to 50°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phrase Single Phase
Power Rating (Watts kW) 6.8kW
Power Source 230V, 50Hz
Product Depth 315mm
Product Height 716mm
Product Width 820mm
Range Description Fujitsu Airstage Standard Outdoor Units
Refrigerant Type R32
Sound Pressure Level 53 dBA
System Suitability Suitable for Domestic Heating Systems. Suitable for Commercial Heating Systems.
Type Single Split Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.

Downloads

Declaration of Conformity 24_Under_Ceiling_Standard Tech Specs Tech Specs 18_Medium_Static_Duct_22_45_Standard Tech Specs 15_Medium_Static_Compact_Duct_ Tech Specs 12_Cassette_Standard 10_Compact_Cassette_Standard
