Product code: C000874

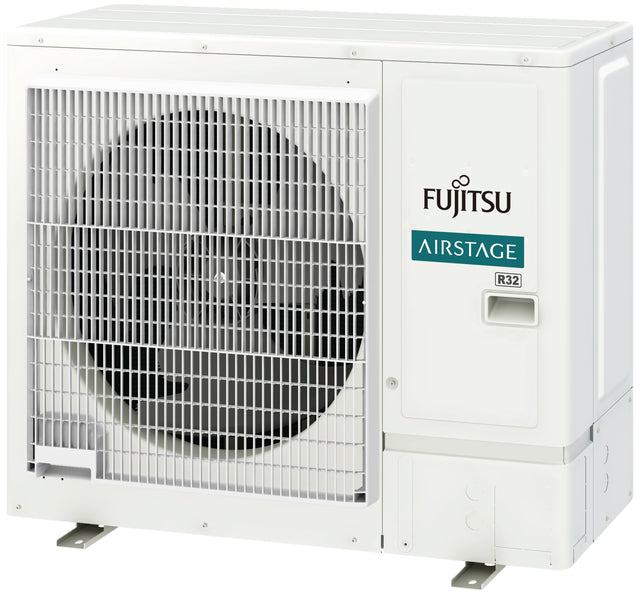

Fujitsu Airstage 9.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG36KATA

Fujitsu Airstage 9.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG36KATA
Fujitsu Airstage 9.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG36KATA
Fujitsu Airstage 9.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG36KATA
Fujitsu Airstage 9.5kW Economy Single Split Outdoor Unit R32 Single Phase AOEG36KATA

The Fujitsu Airstage 5.5kW Eco Single Split Outdoor Unit Single Phase R32 features a compact design suitable for a wide range of settings ...

Read more
  • 3 Year warranty
  • Space-saving compact design
  • Compatible with environmentally-friendly R32 refrigerant
  • Single split air conditioning outdoor unit
  • Nom. cooling capacity of 2.5kW
  • Nom. heating capacity of 3.2kW
View more details
£915.60 excl. VAT
£1,098.72inc. VAT
Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Fujitsu Airstage 5.5kW Eco Single Split Outdoor Unit Single Phase R32 features a compact design suitable for a wide range of settings. It utilises DC technology to operate quietly, minimising disturbance to the surrounding environment. Additionally, the unit is compatible with R32 and helps reduce energy consumption, promoting efficiency while still providing effective cooling.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • Space-saving compact design
  • Compatible with environmentally-friendly R32 refrigerant
  • Single split air conditioning outdoor unit
  • Nom. cooling capacity of 2.5kW
  • Nom. heating capacity of 3.2kW
  • Aluminium heat exchanger fin



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 62.5 m³/min
Brand Fujitsu Airstage
Colour Beige
Compatible with Compatible with AUXG36KRLB Compact Cassette Indoor Unit. Compatible with ARXG36KMLA Medium Static Ducted Indoor Unit. Compatible with ABYG36KRTA Ceiling Suspended Indoor Unit. Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 3/8"
Liquid Pipe Size 5/8"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOEG36KATA
Max. Pipe Run 30m
Nom. Cooling Capacity 9.5kW
Nom. Heating Capacity 10.8kW
No. of Indoor Units 1
Operating Temperature Range (Cooling) -10°CDB to 50°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phrase Single Phase
Power Rating (Watts kW) 9.5kW
Power Source 230V, 50Hz
Product Depth 320mm
Product Height 788mm
Product Width 940mm
Range Description Fujitsu Airstage Economy Range
Refrigerant Type R32
Sound Pressure Level 55 dBA
System Suitability Suitable for Domestic Heating Systems. Suitable for Commercial Heating Systems.
Type Single Split Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.

Downloads

Declaration of Conformity 23_Under_Ceiling_Eco Tech Specs Tech Specs 17_Medium_Static_Duct_22_45_Eco Tech Specs 11_Cassette_Eco
