Product code: C000875

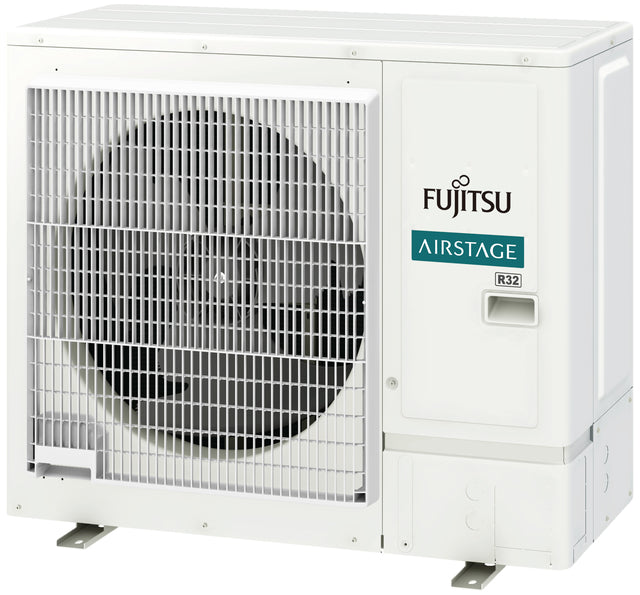

Fujitsu Airstage 9.5kW Simultaneous Multi Split Outdoor Unit R32 Single Phase AOEG36KBTB

Fujitsu Airstage 9.5kW Simultaneous Multi Split Outdoor Unit R32 Single Phase AOEG36KBTB
Fujitsu Airstage 9.5kW Simultaneous Multi Split Outdoor Unit R32 Single Phase AOEG36KBTB

Fujitsu Airstage 9.5kW Simultaneous Multi Split Outdoor Unit R32 Single Phase AOEG36KBTB is ideal for various installations, whether it be in an office or commercial space ...

Read more
  • Simultaneous multi split air conditioning outdoor unit
  • 3 Year warranty
  • Suitable for use in office environments
  • Space-saving compact design, shorter than a twin outdoor unit and easier to install in tight spaces
  • Compatible with environmentally-friendly R32 refrigerant
  • Flexible installation with a pipe length of up to 50m
£1,226.40 excl. VAT
£1,471.68inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Fujitsu Airstage 9.5kW Simultaneous Multi Split Outdoor Unit R32 Single Phase AOEG36KBTB is ideal for various installations, whether it be in an office or commercial space. It can accommodate up to 3 indoor units in the same room connected to one outdoor unit. Simply select indoor units based on floor layout and heat load determined by the number of occupants and sunlight entering the room. This product ensures perfect airflow distribution for ultimate comfort.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Simultaneous multi split air conditioning outdoor unit
  • 3 Year warranty
  • Suitable for use in office environments
  • Space-saving compact design, shorter than a twin outdoor unit and easier to install in tight spaces
  • Compatible with environmentally-friendly R32 refrigerant
  • Flexible installation with a pipe length of up to 50m
  • Suitable for installation in large residences and multi-storey buildings
  • Nom. cooling capacity of 9.5kW
  • Aluminium heat exchanger fin



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 62.5 m³/min
Brand Fujitsu Airstage
Colour Beige
Compatible with Compatible with AUXG18KVLA Compact Cassette Indoor Unit. Compatible with ARXG18KLLAP Slim Ducted Indoor Unit. Contact Oceanair for more details.
Energy Rating (Cooling)* A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 5/8"
Liquid Pipe Size 3/8"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOEG36KBTB
Max. Pipe Run 50m
Nom. Cooling Capacity 9.5kW
Nom. Heating Capacity 10.8kW
No. of Indoor Units 3
Operating Temperature Range (Cooling) -10°CDB to 50°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phrase Single Phase
Power Rating (Watts kW) 9.5kW
Power Source 230V, 50Hz
Product Depth 788mm
Product Height 320mm
Product Width 940mm
Range Description Fujitsu Airstage Standard Outdoor Units
Refrigerant Type R32
Sound Pressure Level 55 dBA
System Suitability Suitable for Domestic Heating Systems. Suitable for Commercial Heating Systems.
Type Simultaneous Multi Split Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.
