Product code: C000895

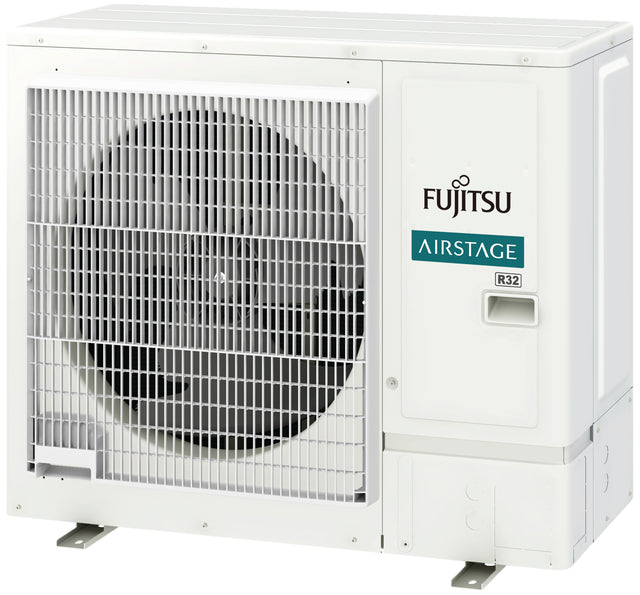

Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW AOEH36KMTB

Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW AOEH36KMTB
Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW AOEH36KMTB
Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW AOEH36KMTB
Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW AOEH36KMTB

The Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW features a compact design suitable for a wide range of settings ...

Read more
  • 3 Year warranty
  • Space-saving compact design
  • Usually paired with ASEG36KMTB indoor units
  • Compatible with environmentally-friendly R32 refrigerant
  • Features a low noise mode
  • Highly energy efficient
View more details
£876.00 excl. VAT
£1,051.20inc. VAT
Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Fujitsu Airstage KM Series Single Split Outdoor Unit Single Phase R32 9.4kW features a compact design suitable for a wide range of settings. It utilises DC multi inverter technology to operate quietly, minimising disturbance to the surrounding environment. Additionally, the unit is compatible with R32 and helps reduce energy consumption, promoting efficiency while still providing effective cooling.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • 3 Year warranty
  • Space-saving compact design
  • Usually paired with ASEG36KMTB indoor units
  • Compatible with environmentally-friendly R32 refrigerant
  • Features a low noise mode
  • Highly energy efficient
  • Nom. cooling capacity of 9.4kW
  • Nom. heating capacity of 10.1kW

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 62.5 m³/min
Brand Fujitsu Airstage
Colour Beige
Compatible with Compatible with KM Series Indoor units Contact Oceanair for more details.
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 5/8"
Liquid Pipe Size 3/8"
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No AOEH36KMTB
Max. Pipe Run 50m
Nom. Cooling Capacity 9.4kW
Nom. Heating Capacity 10.1kW
No. of Indoor Units 1
Operating Temperature Range (Cooling) -15°CDB to 46°CDB
Operating Temperature Range (Heating) -15°CDB to 24°CDB
Phrase Single Phase
Power Rating (Watts kW) 9.4kW
Power Source 230V, 50Hz
Product Depth 320mm
Product Height 788mm
Product Width 940mm
Range Description Fujitsu Airstage KM Series
Refrigerant Type R32
Sound Pressure Level 55 dBA
System Suitability Suitable for Domestic Heating Systems.
Type Single Split Outdoor Unit
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section.

Visit your local branch or contact us for more information.

Downloads

Declaration of Conformity Tech Specs 06_Wall_Mounted_Standard_KM_Range
