Product code: H000904

Joule Samsung 16kW Monobloc R32 Air Source Heat Pump HHSM-G600016-1

The Joule-Samsung 16 - 12.28kW 240V monobloc air source heat pump is designed for use with R32 refrigerant, offering efficient and reliable performance ...

Read more
  • 7 Year warranty
  • Part of a heating and hot water supply solution
  • Compatible with DHW and suitable for use with Joule Kodiak pre plumb water cylinders
  • Environmentally friendly R32 refrigerant
  • Space saving monobloc air source heat pump system
  • Available in a variety of different outputs
Up to A+++
£2,183.75 excl. VAT
£2,620.50inc. VAT

Available in 1-2 days

Description

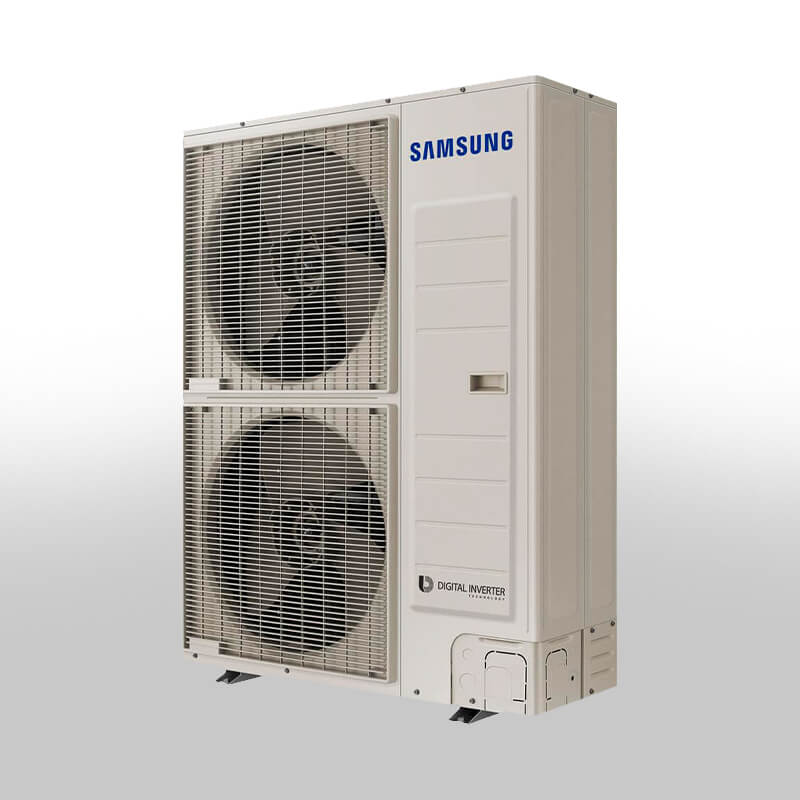

The Joule-Samsung 16 - 12.28kW 240V monobloc air source heat pump is designed for use with R32 refrigerant, offering efficient and reliable performance. This floor-standing unit features an inverter-type compressor for enhanced energy efficiency and operates on an air-to-water system. Backed by a 7-year warranty, it provides long-lasting assurance and quality.

Part of a monobloc air to water heat pump system. For more specific details, contact Oceanair for compatibility and suitability advice.

  • 7 Year warranty
  • Part of a heating and hot water supply solution
  • Compatible with DHW and suitable for use with Joule Kodiak pre plumb water cylinders
  • Environmentally friendly R32 refrigerant
  • Space saving monobloc air source heat pump system
  • Available in a variety of different outputs
  • Available as separate units or as packaged solutions
  • Smart Grid ready and PV enabled
  • 4.52 SCOP
  • 65°C Hot Water
  • Operates down to -20°C
  • Quiet operation of up to 52 DbdB
  • Smart connectivity available with the Samsung SmartThings app (Wi-Fi kit sold separately) enabling smartphone control



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Samsung
Compatible with Compatible with various controllers and hot water cylinders, including Joule Kodiak indirect pre plumbed water cylinders. Contact Oceanair for more details.
COP* 4.42
EER* 4.27
Energy Rating Up to A+++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Manufacturer Guarantee/ Manufacturer Warranty 7 Year Warranty
Manufacturer's Model No HHSM-G600016-1
Max. Water Flow Rate 58 l/min
Min. Water Flow Rate 12 l/min
Nom. Cooling Capacity 14.000W
Nom. Heating Capacity 16.000W
Operating Ambient Temperature Range (Cooling) 10˚C to 46˚C
Operating Ambient Temperature Range (Heating) -25˚C to 35˚C
Operating Ambient Temperature Range (Hot Water) -25˚C to 43˚C
Phrase Single Phase
Power Rating (Watts kW) 5kW
Power Voltage Supply 220-240V,50Hz
Product Depth 330mm
Product Height 1420mm
Product Width 940mm
Range Description Joule Samsung Monobloc Air to Water Heat Pumps
Refrigerant Type R32
SCOP* 4.48
Sound Power Level 68 dBA
Sound Pressure Level 54 dBA
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for use with air to water heat pump systems.
System Type Domestic Heating, Cooling and Hot Water
Type Monobloc Air Source Heat Pump
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 18°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.

Visit your local branch or contact us for more information.
