Product code: H000020

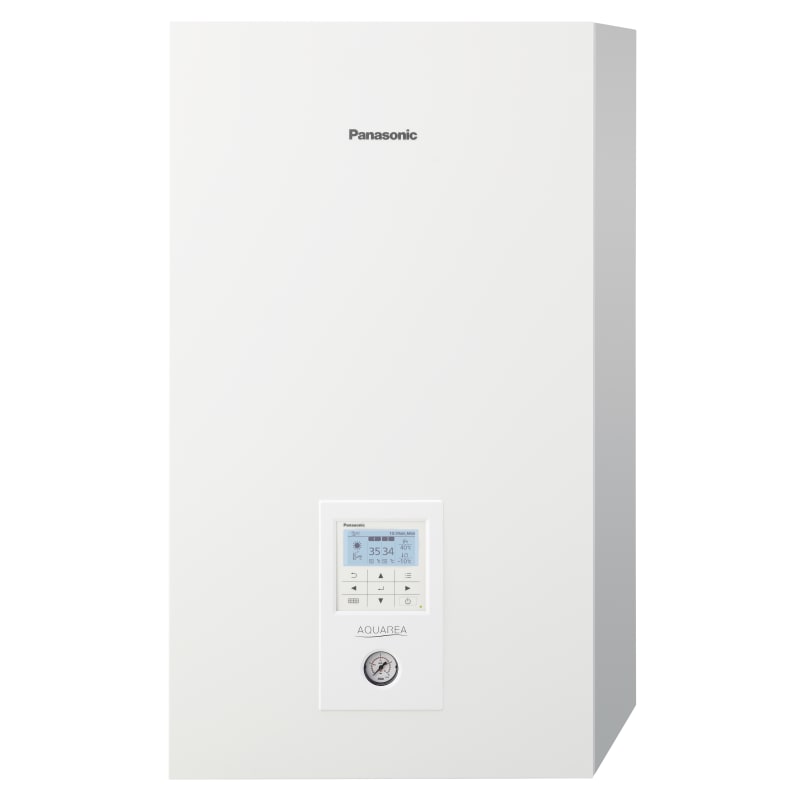

Panasonic Aquarea High Performance H Gen Bi-Bloc Heat Pump Indoor Unit 12kW 1Ph

Panasonic Aquarea High Performance H Gen Bi-Bloc Heat Pump Indoor Unit 12kW 1Ph
Panasonic Aquarea High Performance H Gen Bi-Bloc Heat Pump Indoor Unit 12kW 1Ph

The new Panasonic Aquarea H Generation is specifically designed for low-energy homes, delivering an impressive COP of 5 (on the 3.2kW model) ...

Read more
  • Part of a heating and cooling split air source heat pump system
  • R410A Refrigerant
  • Awarded Good Design Award 2017
  • Control your heating via smartphone or smart device with Aquarea Smart Cloud (sold separately)
  • Integrated 6kW electric heater
  • Hydrobox air to water heat pump indoor unit
Up to A+++
£2,010.64 excl. VAT
£2,412.77inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The new Panasonic Aquarea H Generation is specifically designed for low-energy homes, delivering an impressive COP of 5 (on the 3.2kW model). With advanced technology and sophisticated control systems, it maintains high capacity and efficiency even at temperatures as low as -7°C and -15°C. Optimised software ensures maximum energy efficiency tailored to the needs of low-consumption homes. Aquarea operates reliably in extreme conditions, down to -20°C. Additionally, its compact outdoor unit design ensures easy installation.

Part of a bi-bloc system which comprises of separate indoor and outdoor units, seamlessly connecting to the heating and/or hot water system.

Designed to work in tandem with an outdoor unit and various components. For more specific details, contact Oceanair for compatibility and suitability advice.

  • Part of a heating and cooling split air source heat pump system
  • R410A Refrigerant
  • Awarded Good Design Award 2017
  • Control your heating via smartphone or smart device with Aquarea Smart Cloud (sold separately)
  • Integrated 6kW electric heater
  • Hydrobox air to water heat pump indoor unit
  • Also available as part of a kit
  • Compatible with Aquarea Smart Cloud (available separately)
  • Exceptional efficiency with COP of 5 in the 3.2kW model
  • Outstanding energy savings as rated up to A+++
  • Easy installation and maintenance
  • Suitable for low consumption homes
  • Specialised software supports a minimum output temperature of 20°C
  • Reliable in extreme conditions as operates effectively in temperatures as low as -20°C
  • Optimal system performance with automatic air purge valve Clear compressor frequency display



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Certifications Met EN14511
Colour White
Compatible with Compatible with various Panasonic Aquarea High Performance Devices. Compatible with WH-UD12HE5 Outdoor Unit. Compatible with Optional Wi-Fi adapter CZ-TAW1. Compatible with DHW Tank PAW-TD20C1E5. Contact Oceanair for more details.
Connection Type R1 1/4" Water Pipe Connector
Cooling Capacity 10kW
COP* 4.74
EER* 2.81
Energy Rating Up to A+++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Heating Capacity 12kW
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (T's and C's Apply)
Manufacturer's Model No WH-SDC12H6E5
Operating Ambient Temperature Range (Hot Water) Up to 60 °C
Phrase Single Phase
Power Voltage Supply 240V, 50Hz
Product Depth 340mm
Product Height 892mm
Product Width 500mm
Range Description Panasonic Aquarea High Performance Air Source Heat Pumps - H Generation
Refrigerant Type R410A
Sound Pressure Level 33 dBA
Suggested House Parameters Suitable for low energy consumption homes. Suitable for new installations.
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for use with air to water heat pump systems.
System Type Domestic Heating and Cooling
Type Air Source Heat Pump Indoor Unit
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.
