Product code: H000019

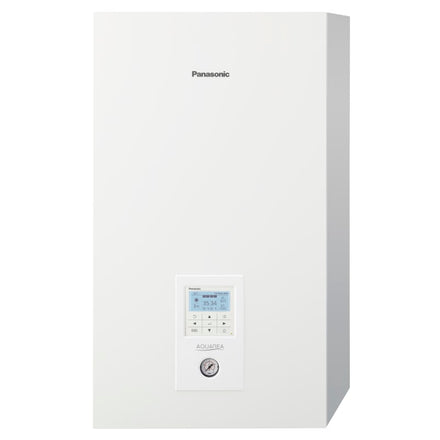

Panasonic Aquarea High Performance J Gen Bi-bloc Heat Pump Indoor Unit 3kW - 5kW 1Ph

Panasonic Aquarea High Performance J Gen Bi-bloc Heat Pump Indoor Unit 3kW - 5kW 1Ph
Panasonic Aquarea High Performance J Gen Bi-bloc Heat Pump Indoor Unit 3kW - 5kW 1Ph
Panasonic Aquarea High Performance J Gen Bi-bloc Heat Pump Indoor Unit 3kW - 5kW 1Ph

Panasonic’s Aquarea air-to-water heat pump range, spanning from 3kW to 9kW, is among the most comprehensive on the market ...

Read more
  • Part of a heating and cooling split air source heat pump system
  • Hydrobox air to water heat pump indoor unit
  • Precise temperature control with Panasonic inverter compressor
  • Integrated 3kW electric heater
  • Also available as part of a kit
  • Available as single phase and three phase
Up to A+++
£1,421.88 excl. VAT
£1,706.26inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Panasonic’s Aquarea air-to-water heat pump range, spanning from 3kW to 9kW, is among the most comprehensive on the market. It provides tailored solutions for properties of all sizes and varying heating and cooling requirements. Ideal for both new construction and renovation projects, these systems are designed to be cost-effective while minimising environmental impact. Including many components inside the heat pump as standard, the Panasonic Aquarea is one of the most compact air to water heat pumps on the market. The Panasonic Aquarea High Performance air source heat pump range cools space in summer and brings hot water all year round, providing the perfect climate for home. The Panasonic Aquarea High Performance J Gen bi-bloc Heat Pump 3kW - 5kW 1Ph delivers exceptional efficiency and energy savings with reduced CO2 emissions and a compact design.

Part of a bi-bloc system which comprises of separate indoor and outdoor units, seamlessly connecting to the heating and/or hot water system.

Designed to work in tandem with an outdoor unit and various components. For more specific details, contact Oceanair for compatibility and suitability advice.

  • Part of a heating and cooling split air source heat pump system
  • Hydrobox air to water heat pump indoor unit
  • Precise temperature control with Panasonic inverter compressor
  • Integrated 3kW electric heater
  • Also available as part of a kit
  • Available as single phase and three phase
  • Compatible with Aquarea Smart Cloud (available separately)
  • 'A' water pump with variable speed
  • Environmentally friendly R32 refrigerant
  • Suitable for 3kw - 5kW heat pump outdoor units
  • Suitable for new installations and low consumption homes
  • Compatible with underfloor heating
  • Compatible with radiators
  • Special software for low consumption homes with minimum output temperature: 20°C
  • Perfect choice for new construction projects
  • Space saving installation as no volume required on open circuit to operate
  • Delivers water outlet temperatures up to 60 °C even at -10 °C
  • Offered in High Performance and T-CAP models
  • Powerful circulating pump
  • Features a redesigned indoor unit
  • Enhanced seamless connectivity integration
  • Remote controller designed to complement the entire system seamlessly (Sold separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Certifications Met EN14511
Colour White
Compatible with Compatible with various Panasonic Aquarea High Performance Devices. Compatible with WH-UD03JE5 Outdoor Unit. Compatible with Optional Wi-Fi adapter CZ-TAW1. Compatible with DHW Tank PAW-TD20C1E5. Contact Oceanair for more details.
Connection Type R1 1/4" Water Pipe Connector
Cooling Capacity 3.kW
COP* 5.33
EER* 3.52
Energy Rating Up to A+++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Heating Capacity 3.2kW
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (T's and C's Apply)
Manufacturer's Model No WH-SDC0305J3E5
Phrase Single Phase
Power Voltage Supply 240V, 50Hz
Product Depth 340mm
Product Height 892mm
Product Width 500mm
Range Description Panasonic Aquarea High Performance Air Source Heat Pumps - J Generation
Refrigerant Type R32
SCOP* 5.07
Sound Pressure Level 28 dBA
Suggested House Parameters Suitable for low energy consumption homes. Suitable for new installations.
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for use with air to water heat pump systems.
System Type Domestic Heating and Cooling
Type Air Source Heat Pump Indoor Unit
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.

Visit your local branch or contact us for more information.
