Product code: H000013

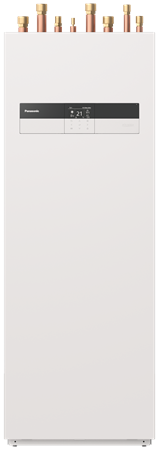

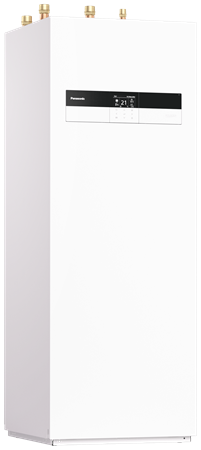

Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW

Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW
Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW
Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW
Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW
Panasonic Aquarea High Performance K Gen Split All in One Air Source Heat Pump 3kW - 9kW

Panasonic’s Aquarea air-to-water heat pump range, spanning from 3 kW to 30 kW, is among the most comprehensive on the market ...

Read more
  • Part of a split air source heat pump system
  • Combines stainless steel water tank and indoor unit in one
  • Compatible with Aquarea Smart Cloud (available separately)
  • 'A' water pump with variable speed
  • Environmentally friendly R32 refrigerant
  • Suitable for 3kw - 9kW heat pump systems
Up to A+++
£4,159.86 excl. VAT
£4,991.83inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Panasonic’s Aquarea air-to-water heat pump range, spanning from 3 kW to 30 kW, is among the most comprehensive on the market. It provides tailored solutions for properties of all sizes and varying heating and cooling requirements. Ideal for both new construction and renovation projects, these systems are designed to be cost-effective while minimising environmental impact. Including many components inside the heat pump as standard, the Panasonic Aquarea is one of the most compact air to water heat pumps on the market. The Panasonic Aquarea High Performance All in One indoor unit makes installation even easier by combining a stainless steel tank and indoor unit in one. Also, the Panasonic Aquarea High Performance All in One is perfect for new installations and low consumption houses as well as a variety of properties that demand high efficiency and energy savings.

Designed to work in tandem with an outdoor unit and various components. For more specific details, contact Oceanair for compatibility and suitability advice.

  • Part of a split air source heat pump system
  • Combines stainless steel water tank and indoor unit in one
  • Compatible with Aquarea Smart Cloud (available separately)
  • 'A' water pump with variable speed
  • Environmentally friendly R32 refrigerant
  • Suitable for 3kw - 9kW heat pump systems
  • Suitable for new installations and low consumption homes
  • Compatible with underfloor heating Compatible with radiators
  • Perfect choice for new construction projects
  • Space saving installation as no volume required on open circuit to operate
  • Delivers water outlet temperatures up to 60 °C even at -10 °C
  • Offered in High Performance and T-CAP models
  • Powerful circulating pump
  • Features a redesigned indoor unit
  • Enhanced seamless connectivity integration
  • Remote controller designed to complement the entire system seamlessly (Sold separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Certifications Met EN14495
Colour White
Compatible with Compatible with various Panasonic Aquarea High Performance Split Units from 3kW to 9kW, including KIT-ADC03K3E5UK. Compatible with Optional Wi-Fi adapter CZ-TAW1C. Contact Oceanair for more details.
COP* Up to 5.33
Energy Rating Up to A+++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Insulation Type U-Vacua™
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (T's and C's Apply)
Manufacturer's Model No WH-ADC0309K3E5
Material Stainless Steel
Operating Ambient Temperature Range (Heating) Down to -25 °C
Operating Ambient Temperature Range (Hot Water) Up to 65 °C
Phrase Single Phase
Power Voltage Supply 240V, 50Hz
Product Contents Circulating Pump\nStrainer (Filter)\nPressure Relief Valve
Product Depth 602mm
Product Height 1642mm
Product Width 599mm
Range Description Panasonic Aquarea High Performance Air Source Heat Pumps - K Generation
Refrigerant Type R32
SCOP* Up to 5.33
Sound Pressure Level 33 dBA
Suggested House Parameters Suitable for low energy consumption homes. Suitable for new installations.
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
Suitable for Underfloor Heating Suitable for Underfloor Heating
System Suitability Suitable for Domestic Hot Water and Heating. Suitable for use with air to water heat pumps
System Type Domestic Heating and Cooling
Tank Capacity 185L
Type All in One Air to Water Heat Pump Indoor Unit
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.

Visit your local branch or contact us for more information.
