Product code: H001192

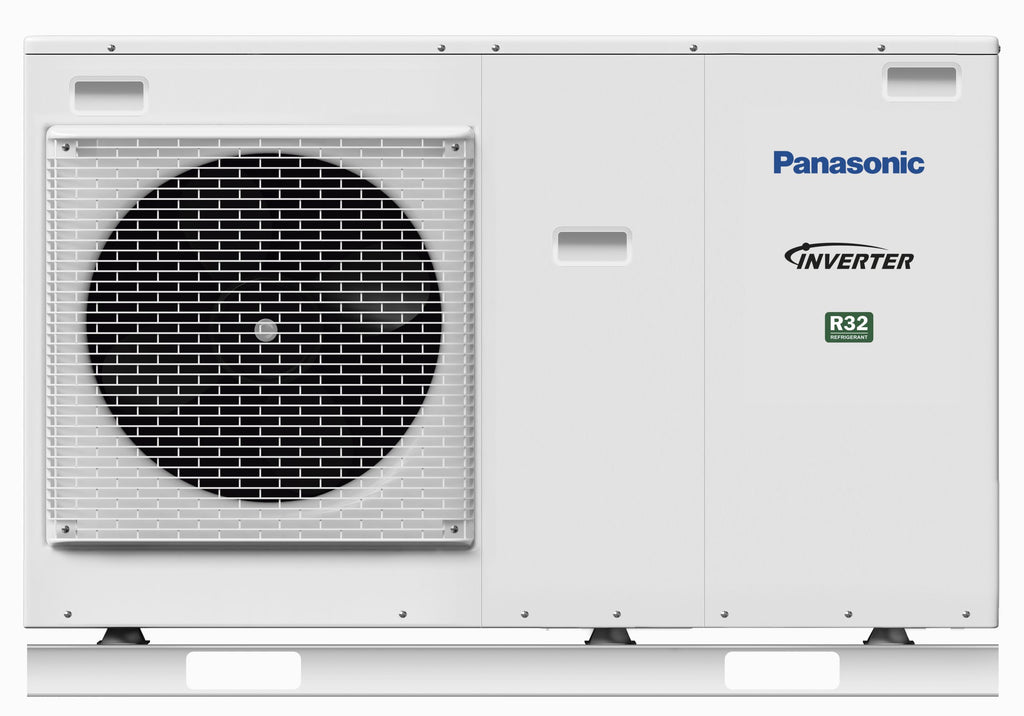

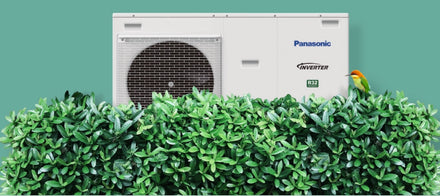

Panasonic Aquarea High Performance Monobloc Air Source Heat Pump J Series 5kW

Panasonic Aquarea High Performance Monobloc Air Source Heat Pump J Series 5kW
Panasonic Aquarea High Performance Monobloc Air Source Heat Pump J Series 5kW
Panasonic Aquarea High Performance Monobloc Air Source Heat Pump J Series 5kW

The Panasonic Aquarea High Performance Hydraulic Monobloc Air Source Heat Pump J Series is a groundbreaking, energy-efficient system utilising air-to-water heat pump technology ...

Read more
  • Eligible for EC04
  • Highly efficient R32 refrigerant
  • Integrated electric heater
  • Achieves A+++ energy rating (average climate, 35°C water outlet)
  • Ensures high heating and cooling performance, even in low outdoor temperatures
  • Specialised software for energy-efficient homes, with a minimum output temperature of 20°C
Up to A+++
£2,475.58 excl. VAT
£2,970.70inc. VAT

Available in 1-2 days

Description

The Panasonic Aquarea High Performance Hydraulic Monobloc Air Source Heat Pump J Series is a groundbreaking, energy-efficient system utilising air-to-water heat pump technology. Aquarea ensures effective and efficient home heating, even in extreme outdoor temperatures. It also provides cooling during summer and year-round hot water supply. The Aquarea High Performance range is ideal for new installations and energy-efficient homes, delivering exceptional efficiency, reduced energy costs, and minimised CO2 emissions, all while requiring minimal space. This unit is part of a monobloc system, featuring only an outdoor unit. This system eliminates the need for a refrigerated connection, connecting solely to the heating and/or hot water system for streamlined installation.

For more specific details, contact Oceanair for compatibility and suitability advice.

  • Eligible for EC04
  • Highly efficient R32 refrigerant
  • Integrated electric heater
  • Achieves A+++ energy rating (average climate, 35°C water outlet)
  • Ensures high heating and cooling performance, even in low outdoor temperatures
  • Specialised software for energy-efficient homes, with a minimum output temperature of 20°C
  • Operates reliably at outdoor temperatures as low as -20°C
  • Cooling mode functionality down to 10°C outdoor temperature
  • Control your climate remotely via smartphone with Aquarea Service Cloud and Wi-Fi adapter (Sold Separately)
  • User-friendly remote controller for seamless operation
  • Compatible with domestic hot water supply when used with an external tank option
  • Easy installation and maintenance process
  • Equipped with a built-in magnet water filter, flow meter, and automatic air purge valve



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Certifications Met EN14498
Colour White
Compatible with Compatible with various Panasonic Aquarea High Performance Devices. Compatible with Optional Wi-Fi adapter CZ-TAW1. Contact Oceanair for more details.
Connection Type R1 1/4" Water Pipe Connector
COP* 5.08
EER* 5.05
Energy Rating Up to A+++
Heating Capacity 5kW
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (T's and C's Apply)
Manufacturer's Model No WH-MDC05J3E5
Operating Ambient Temperature Range (Cooling) 10 °C - 43 °C
Operating Ambient Temperature Range (Heating) -20 °C - 35 °C
Phrase Single Phase
Power Voltage Supply 240V, 50Hz
Product Depth 320mm
Product Height 865mm
Product Width 1283mm
Range Description Panasonic Aquarea High Performance Air Source Heat Pumps - J Generation
Refrigerant Type R32
SCOP* 5.12
Sound Pressure Level 59 dBA
Suggested House Parameters Suitable for low energy consumption homes. Suitable for new installations.
System Suitability Suitable for use with air to water heat pump systems.
System Type Domestic Heating and Cooling
Type Monobloc Air Source Heat Pump
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.

Visit your local branch or contact us for more information.
