Panasonic Aquarea T-CAP Hydraulic M Series
M SeriesProduct code: T-CAP M

Panasonic Aquarea T-CAP Hydraulic M Series

Aquarea M Series, the modular heat pump concept of Panasonic

Introducing M Series T-CAP, the latest generation of Aquarea air to water heat pumps with R290

Aquarea T‑CAP M Series delivers a revolution in the design, performance, connectivity, and sustainability.

The solution is suitable for both new buildings and retrofits, as it offers a sustainable alternative to traditional fossil fuel heating systems and it can be easily integrated with existing water system such as fan coils, floor heating or domestic hot water tanks.

  • Using natural refrigerant R290 with GWP 3.
  • Flexible hydraulic installation, for new buildings or retrofit.
  • Up to 75°C water outlet down to -15°C outdoor
  • Quiet operation: Only 29dB(A) sound pressure at 5m
  • Reliable outdoor units with Panasonic compressor, operating down to -28°C outdoor
  • T-CAP technology: Keeping heating capacity down to -20°C
  • Panasonic Comfort Cloud App and Aquarea Service Cloud included

Key features

Natural refrigerant

Natural refrigerant

Employ natural refrigerant R290 with GWP 3.

Improved clean design

Improved clean design

Refined outdoor design to be blended to the environment

Hydraulic connection

Hydraulic connection

Hydraulic connection between indoor and outdoor.

High specifications

High specifications

Water pressure sensor built-in, U-VacuaTM isolation, easy installation Wi-Fi, supports residential ventilation unit.

Easy installation and maintenance

Easy installation and maintenance

Improved accessibility, practicality and flexibility to indoor and outdoor units.

Panasonic Comfort Cloud App and Aquarea Service Cloud included

Panasonic Comfort Cloud App and Aquarea Service Cloud included

Smart control and maintenance.

Panasonic Aquarea T-CAP Hydraulic M Series
Panasonic Aquarea T-CAP Hydraulic M Series
Panasonic Aquarea T-CAP Hydraulic M Series
Panasonic Aquarea T-CAP Hydraulic M Series
Panasonic Aquarea T-CAP Hydraulic M Series

Information

Video guides offering insight in to the manufacturers product range.

Panasonic Aquarea M Series, the next generation air to water heat pumps

Introducing M Series T-CAP, the latest generation of Aquarea air to water heat pumps with R290.

Aquarea M Series T-CAP is the perfect solution for renovations. The system can be integrated alongside existing radiators with a high-water flow temperature of up to 75°C.

Panasonic’s revolutionary “Big Aquarea T-CAP M Series“ heat pump

Big Aquarea T-CAP M Series is the new Panasonic air to water heat pump powered by R290 with capacities ranging from 20 to 30 kW, connectable in cascade to reach up to 300 kW. It is perfect for central heating and domestic hot water installations. The T-CAP technology ensures stable operation and high performance under extreme conditions. The scroll compressors provide heating temperatures of up to 75⁰C. It can be easily integrated with water systems such as fan coils and water loop heat pumps.

Aquarea M Series T-CAP

Contributing to a decarbonised society

The advanced new system utilises the natural refrigerant R290 for a more sustainable production of heating, cooling and domestic hot water, with re-engineered outdoor units for improved operating performance, even at very low temperatures.

Flexible installation and suit to all lifestyles

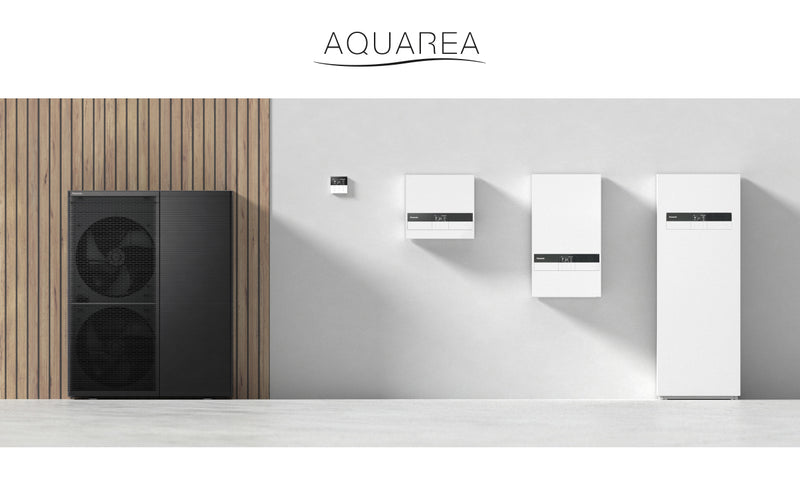

The outdoor unit can function independently with just an indoor remote control, making it an ideal choice for those seeking basic functionalities. Homeowners can opt for enhanced functionality by incorporating the more advanced Control Box or also selecting between a Bi-bloc or All in One system.

The installation of the system is 100% hydraulic, with only water pipes between the outdoor unit and the interior of the home. This allows an easier and more flexible installation, as no additional safety measures are required inside the home related to the use of refrigerant gases or fuel gas piping.

Aquarea T-CAP, high performance whatever the climate

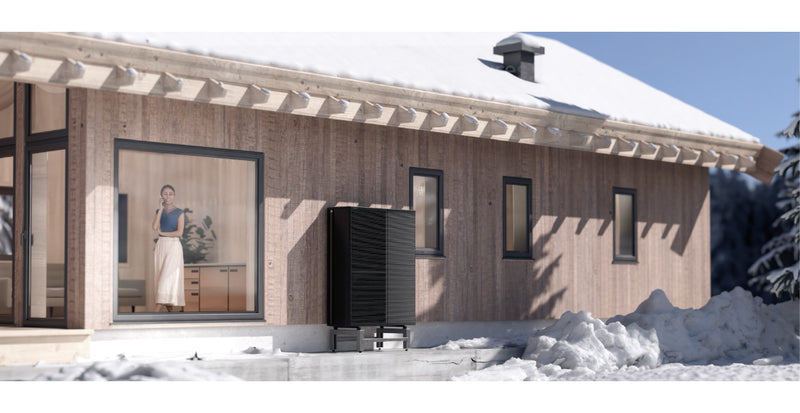

With Aquarea T-CAP technology and the new compressor with Injection technology, Panasonic heat pumps can work in outdoor temperatures as low as -28°C* and maintain capacity without backup heating at -20°C**.

With other heat pumps, higher nominal capacity or the use of an electric heater is required to achieve the same level of comfort at low temperatures.

* 9-12-16kW capacities. **At 35°C flow temperature

Excellent solution for heating system retrofit

Aquarea M Series T-CAP is the perfect solution for renovations. The system can be integrated alongside existing radiators with a high-water flow temperature of up to 75°C.

It can also reach a domestic hot water temperature of up to 65°C without the use of the electric heater, so the tank sterilization can be performed with the heat pump operation.

Additionally, a higher setup of the temperature of the water tank can increase the tapping water volume up to 40%, for a space saving solution.

Internet adapter included for Wi-Fi and LAN connection

Aquarea Smart Cloud is a powerful, intuitive and free of charge service designed to help remotely control Aquarea heat pumps from anywhere, 24/7
