Product code: H000033

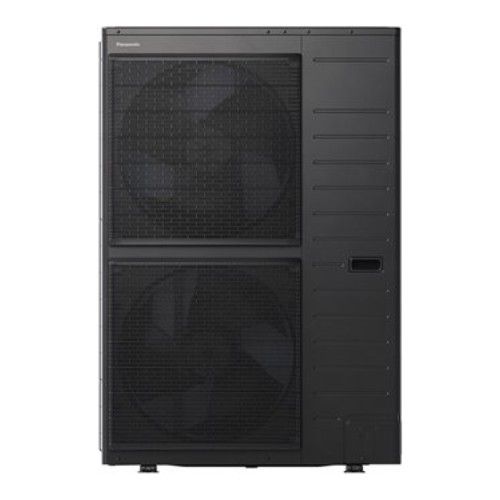

Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5

Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5
Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5
Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5
Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5
Panasonic Aquarea T-CAP K Generation R32 Heat Pump 12kW Outdoor Unit 1Ph WH-UXZ12KE5

Panasonic’s Aquarea K Generation air-to-water heat pump range is among the most comprehensive on the market ...

Read more
  • Part of a heating and cooling split air source heat pump system Improved outdoor unit design to blend into environment
  • Smart Grid ready with PCB adapter (sold separately)
  • Also available as part of a kit: KIT-AXC12KE5, KIT-WXC12K6E5
  • Compatible with Aquarea All in One indoor unit and bi-bloc unit
  • Available as single phase and three phase
  • Bluefin coating on heat exchanger to prolong life
Up to A+++
£3,185.70 excl. VAT
£3,822.84inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

Panasonic’s Aquarea K Generation air-to-water heat pump range is among the most comprehensive on the market. It provides tailored solutions for properties of all sizes and varying heating and cooling requirements. Ideal for both new construction and renovation projects, these systems are designed to be cost-effective while minimising environmental impact. Including many components inside the heat pump as standard, the Panasonic Aquarea is one of the most compact air to water heat pumps on the market. The Panasonic Aquarea T-CAP air source heat pump range cools space in summer and brings hot water even during extremely cold weather, providing the perfect climate for home. The Aquarea K Generation is an innovative, energy-efficient system designed for heating, cooling, and domestic hot water production, delivering exceptional performance. This model is perfect for retrofit installations and high energy consumption homes.

Part of a bi-bloc system which comprises of separate indoor and outdoor units, seamlessly connecting to the heating and/or hot water system.

Designed to work in tandem with an indoor unit and various components. For more specific details, contact Oceanair for compatibility and suitability advice.

  • Part of a heating and cooling split air source heat pump system Improved outdoor unit design to blend into environment
  • Smart Grid ready with PCB adapter (sold separately)
  • Also available as part of a kit: KIT-AXC12KE5, KIT-WXC12K6E5
  • Compatible with Aquarea All in One indoor unit and bi-bloc unit
  • Available as single phase and three phase
  • Bluefin coating on heat exchanger to prolong life
  • Works as part of a split system that can be compatible with Aquarea Smart Cloud (optional)
  • 'A' water pump with variable speed
  • Environmentally friendly R32 refrigerant
  • Compatible with DHW
  • Suitable for retrofit installations and high energy consumption homes
  • Perfect choice for new construction projects
  • Delivers water outlet temperatures up to 60 °C even at -10 °C
  • Offered in High Performance and T-CAP models
  • Powerful circulating pump
  • Remote controller designed to complement the entire system seamlessly (Sold separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Brand Panasonic
Certifications Met EN14511
Colour Black
Compatible with Compatible with Panasonic Aquarea T-CAP All in One K Generation 1 Phase Units WH-ADC0912K6E5. Compatible with Panasonic Aquarea T-CAP Bi-bloc K Series 1 Phase Units. Contact Oceanair for more details.
Cooling Capacity 10.7kW
COP* 4.84
EER* 2.68
Energy Rating Up to A+++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 12.7mm
Heating Capacity 12kW
Liquid Pipe Size 6.35mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty (T's and C's Apply)
Manufacturer's Model No WH-UXZ12KE5
Max. Pipe Length 30m
Operating Ambient Temperature Range (Cooling) 10˚C to 43˚C
Operating Ambient Temperature Range (Heating) -28˚C to 35˚C
Operating Ambient Temperature Range (Hot Water) Up to 60 °C
Phrase Single Phase
Power Voltage Supply 240V, 50Hz
Product Depth 320mm
Product Height 1340mm
Product Width 900mm
Range Description Panasonic Aquarea T-CAP Air Source Heat Pumps - K Generation
Refrigerant Type R32
Sound Power Level 52 dBA
Sound Pressure Level 52 dBA
Suggested House Parameters Suitable for well insulated homes. Suitable for new installations.
Suitable for Renewable Energy Systems Suitable for Renewable Energy Systems
System Suitability Suitable for use with air to water heat pump systems.
System Type Domestic Heating and Cooling
Type Air Source Heat Pump Outdoor Unit
Wi-Fi Enabled Wi-Fi available with adapter (sold separately)
* Efficiency Data Notes COP (A +7°C, W 35°C); Cooling capacity (A 35°C, W 7°C); Heating average climate (W 35°C / W 55°C). EER and COP calculation is based in accordance to EN14511.

Visit your local branch or contact us for more information.
