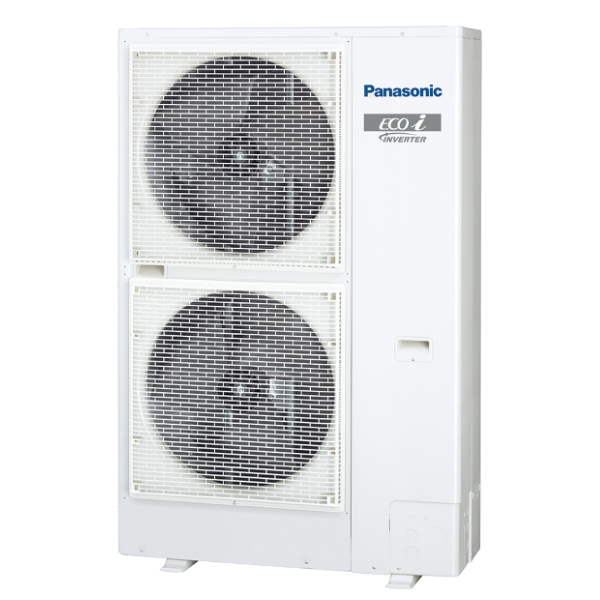

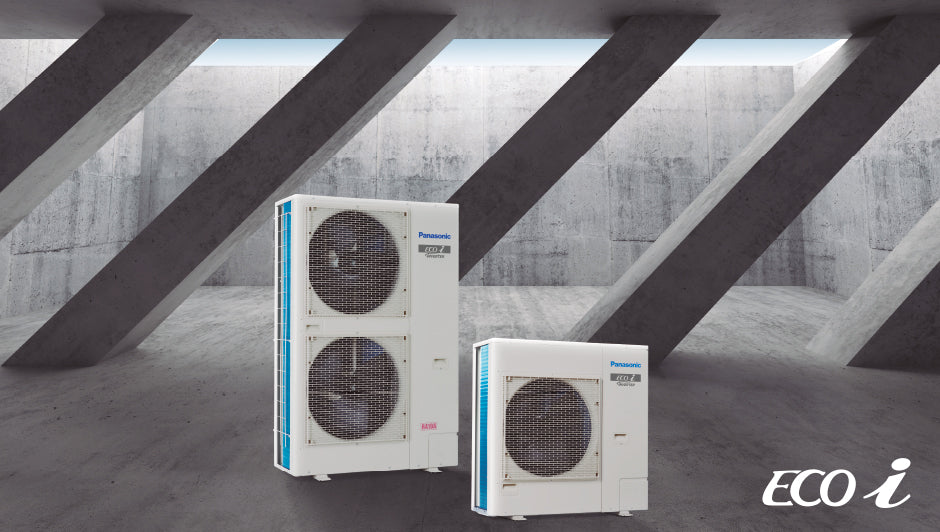

Panasonic Mini ECOi LE Heat Pump System 12.1kW – 28.0kW
VRFProduct code: U-8-80ME2E8

Panasonic Mini ECOi LE Heat Pump System 12.1kW – 28.0kW

2-Pipe Mini ECOi LE Series for Light Commercial & Residential use

The most flexible VRF system ever, meeting the needs of light commercial applications.

A VRF system delivering energy-saving performance, powerful operation reliability and comfort surpassing anything previously possible. It represents a true paradigm shift in air conditioning solutions.

LE1 Series - 8 / 10HP

  • 60 % smaller than ECOi ME2 8 / 10 HP with vertical flow type
  • Flexible piping length (Total : 300m, Furthest : 150m)
  • Maximum number of connectable indoor units: 15

Key features

Of the LE1 / LE2

Of the LE1 / LE2

Full range of ECOi indoor units and controllers.
Variable evaporation temperature control as standard.
Connectable maximum indoor / outdoor capacity ratio up to 130%.
Auto restart from outdoor units.
Demand response (Peak cut) by optional parts.
Suitable for R22 renewable projects.

Efficiency energy control

Efficiency energy control

Upgraded outdoor units deliver high efficiency rating and reduced energy costs.

Space saving

Space saving

Ideal for commercial locations with limited space such as banks and shops.
Compact units integrate easily and discreetly into building design.

Flexible installation

Flexible installation

Reduced installation time thanks to compact units and extra long piping without additional refrigeration charge. High external static pressure 35Pa and small chassis maximise installation options.

Panasonic Mini ECOi LE Heat Pump System 12.1kW – 28.0kW

Information

Video guides offering insight in to the manufacturers product range.

Panasonic's New ECOi EX VRF Systems

VRF with extraordinary energy-saving performance and powerful operation EER 4,70 (8HP model)

A game-changing VRF system delivering energy-saving performance, powerful operation, reliability and comfort surpassing anything previously possible. It represents a true paradigm shift in air conditioning solutions. Taking quality to the extreme — that’s the Panasonic challenge.

Documents

PDF product guides and information.

2 pipe ecoi-ex-me2 series

Energy saving design

The Mini ECOi LE Series with extraordinary energy performance. LE Series has been redesigned with a focus on energy saving performance, reliable quality and comfort.

EER/COP (W/W)

Superior energy efficiency. The operation efficiency has been improved using highly efficient R410A refrigerant, a DC Inverter compressor, the DC motor and a heat exchanger design.

Cooling and Heating design operation conditions

  • Wide operating range (LE2 / LE1).
  • Cooling operation is possible from -10°C DB to +46°C DB.
  • Heating operation is possible as low as -20°C WB.

High durability outdoor unit (LE2 / LE1)

The anti-corrosion Bluefin treatment of the heat exchanger provides greater resistance against corrosion. All models are equipped with Bluefin condenser and treated with high corrosion resistance to rust and salty air for long-lasting performance. Heat exchanger (Bluefin condenser)

Space saving

  • Compact space-saving design
  • High external static pressure 35Pa
  • Long piping length for flexible installation
  • No refrigeration charge up to 50m
  • 130% ratio for connectable indoor capacity units

When unit is installed on a narrow balcony and exposed to the sun, the barrier at the front side would restrict hot air from being discharged. Heat accumulated in an enclosure can cause over-heating. This could potentially result in damage or shorten the product’s life span. A high external static pressure sends the air further away from the outdoor unit and through the barrier. This provides better air circulation and distribution.And a high air pressure of 35Pa discharges the hot air a sufficient distance.

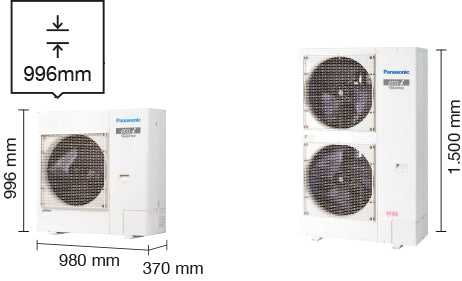

Compact design

LE2 lower height of 996mm. Perfect for installations with limited space and easy to hide within a modern building. Flexible space-saving options compared to single split system.

High external static pressure 35Pa

A. Previous Model - Low Pressure
B. LE Series - High Pressure
C. Heat Accumulated When the pressure is low, hot air will accumulate in the unit thus affecting its work performance and that of unit above it as well.
D. Heat Discharged But with a high pressure of 35Pa, hot air is sent further away preventing overheating inside the outdoor unit enclosure.

Flexible installation

The large piping length allowed between indoor and outdoor brings excellent flexibility for projects. Total piping length reach up to 300m of maximum total piping length and 180m in the 1 fan outdoor unit. Maximum high difference is up to 50m if outdoor from the top and maximum connectable indoor units per each outdoor goes from 6 to 15 depending on the outdoor.
