Product code: C000982

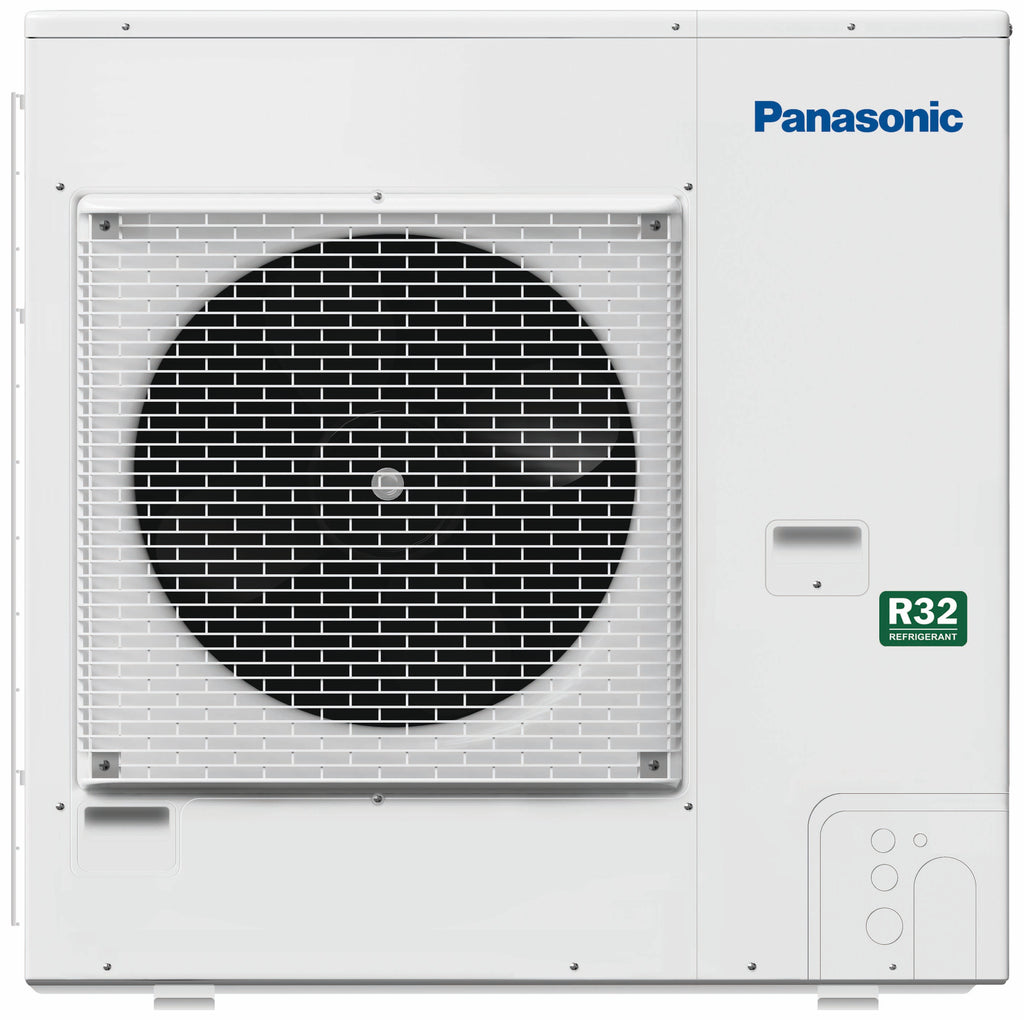

Panasonic PACi Elite NX Series U-125PZH4E5 Single Split Outdoor Unit 12.5kW 1ph R32

The PACi NX Elite range, with capacities from 7.1 to 14.0kW and using R32 refrigerant, offers versatile solutions for various applications ...

Single phase single split outdoor unit adaptable for simultaneous connection of up to 4 indoor units (pipe kit sold separately)
R32 refrigerant for energy efficiency and smaller environmental impact
Part of the PACi Elite NX Series
Top tier commercial air conditioning
Compatible with various Panasonic PACi NX indoor units
Compact chassis for easy installation

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The PACi NX Elite range, with capacities from 7.1 to 14.0kW and using R32 refrigerant, offers versatile solutions for various applications. Up to four indoor units can be connected to a single outdoor unit, with the 7.1, 10.0, 12.0, and 14.0 models supporting twin, triple, and double-twin system configurations. Indoor units can be combined (contact Oceanair for details), ensuring flexibility in design. Operation is always simultaneous, with all connected indoor units functioning under the same settings for streamlined performance and efficiency.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

Single phase single split outdoor unit adaptable for simultaneous connection of up to 4 indoor units (pipe kit sold separately)
R32 refrigerant for energy efficiency and smaller environmental impact
Part of the PACi Elite NX Series
Top tier commercial air conditioning
Compatible with various Panasonic PACi NX indoor units
Compact chassis for easy installation
Slim and lightweight
Excellent seasonal performance even in extreme temperatures (-20 °C to 52 °C) with new Elite PZH4 series fan
Easy to replace old systems with new 3 wire connections

*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 86 m³/min

Brand Panasonic

Certifications Met EN14511

Colour White

Compatible with Compatible with Panasonic NX Elite Under Ceiling Units S-1014PT3E. Compatible with various Panasonic Heating and Cooling Indoor Units. Contact Oceanair for more details.

COP* 3.78

EER* 3.46

Energy Rating (Cooling)* A++

Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Gas Pipe Size 15.88mm

Liquid Pipe Size 9.52mm

Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty

Manufacturer's Model No U-125PZH4E5

Max. Pipe Run 100m

Nom. Cooling Capacity 12.1kW

Nom. Heating Capacity 14.0kW

No. of Indoor Units Up to 4

Operating Temperature Range (Cooling) -20°C to 52°CD

Operating Temperature Range (Heating) -20°C to 24°C

Phrase Single Phase

Power Rating (Watts kW) 12.5kW

Power Source 220 - 240V, 50Hz

Product Depth 370mm

Product Height 996mm

Product Width 980mm

Range Description Panasonic PACi Elite NX Series 4

Refrigerant Type R32

Remote Controller Included No Controller Supplied.

SCOP* 175.6%

SEER* 278.4%

Sound Pressure Level 55 dBA

System Suitability Suitable for Commercial Use. Suitable for retail stores. Suitable for schools.

Type Commercial Single Split Outdoor Unit

* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section. EER and COP calculation is based in accordance to EN14511
