Product code: C001001

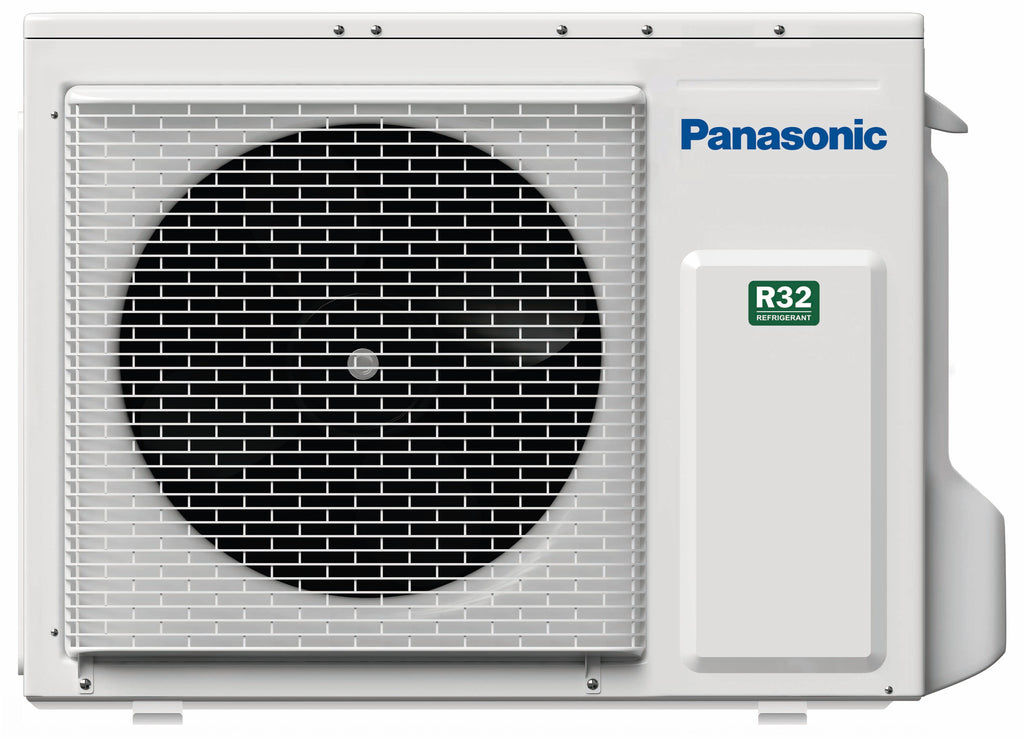

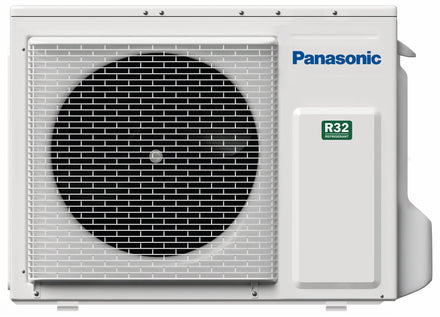

Panasonic PACi NX Elite U-60PZH3E5 Single Split Outdoor Unit 6.0kW 1ph R32

Panasonic PACi NX Elite U-60PZH3E5 Single Split Outdoor Unit 6.0kW 1ph R32
Panasonic PACi NX Elite U-60PZH3E5 Single Split Outdoor Unit 6.0kW 1ph R32

The PACi NX Elite range, with capacities from 3.6 to 14.0kW and using R32 refrigerant, offers versatile solutions for various applications ...

Read more
  • Single phase single split outdoor unit adaptable for simultaneous connection of up to 4 indoor units (pipe kit sold separately)
  • R32 refrigerant for energy efficiency and smaller environmental impact
  • Part of the PACi Elite NX Series
  • Suitable for gyms, restaurants, retail stores and more
  • Top tier commercial air conditioning with high energy efficiency in both heating and cooling
£1,017.60 excl. VAT
£1,221.12inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The PACi NX Elite range, with capacities from 3.6 to 14.0kW and using R32 refrigerant, offers versatile solutions for various applications. Up to four indoor units can be connected to a single outdoor unit, with the 7.1, 10.0, 12.0, and 14.0 models supporting twin, triple, and double-twin system configurations. Indoor units can be combined (contact Oceanair for details), ensuring flexibility in design. Operation is always simultaneous, with all connected indoor units functioning under the same settings for streamlined performance and efficiency.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Single phase single split outdoor unit adaptable for simultaneous connection of up to 4 indoor units (pipe kit sold separately)
  • R32 refrigerant for energy efficiency and smaller environmental impact
  • Part of the PACi Elite NX Series
  • Suitable for gyms, restaurants, retail stores and more
  • Top tier commercial air conditioning with high energy efficiency in both heating and cooling
  • Compatible with various Panasonic PACi NX indoor units
  • Compact chassis for easy installation
  • Slim and lightweight
  • Easy to replace old systems with new 3 wire connections



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 42 m³/min
Brand Panasonic
Certifications Met EN14511
Colour White
Compatible with Compatible with various Panasonic PACi Elite NX indoor units. Compatible with Panasonic S-6010PK3E wall mounted indoor unit. Contact Oceanair for more details.
COP* 4.19
EER* 3.86
Energy Rating (Cooling)* A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 12.7mm
Liquid Pipe Size 6.35mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No U-60PZH3E5
Max. Pipe Run 40m
Nom. Cooling Capacity 6.1kW
Nom. Heating Capacity 7.0kW
No. of Indoor Units Up to 4
Operating Temperature Range (Cooling) -15°C to 46°C
Operating Temperature Range (Heating) -20°C to 24°C
Phrase Single Phase
Power Rating (Watts kW) 6.0kW
Power Source 220 - 240V, 50Hz
Product Depth 320mm
Product Height 695mm
Product Width 875mm
Range Description Panasonic PACi Elite NX Series 3
Refrigerant Type R32
Remote Controller Included No Controller Supplied.
SCOP* 4.8
SEER* 7.2
Sound Pressure Level 47 dBA
System Suitability Suitable for Commercial Use.
Type Commercial Single Split Outdoor Unit
* Efficiency Data Notes EER and COP calculation is based in accordance to EN14511. For models below 12 kW, the SEER and SCOP is calculated based on values of EU/626/2011.
