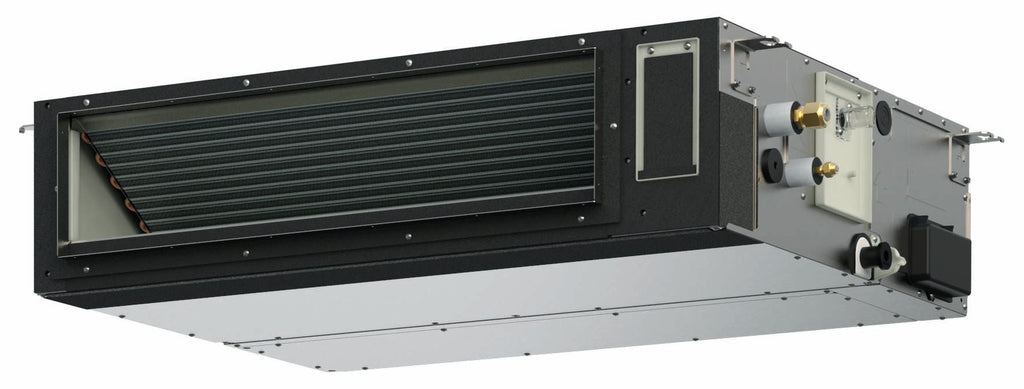

Panasonic PACi NX Series S-1014PF3E Adaptive Duct Unit 10.0-14.0kW with nanoeX

Description

The newly designed adaptive ducted unit PF3 for R32 PACi offers exceptional flexibility with two installation options: horizontal or vertical. With a maximum external static pressure of 150Pa, it supports versatile installation configurations. The unit features selectable inlet air positions (rear or bottom entry) and an improved drain pan compatible with both horizontal and vertical setups. A drain pump is included for added convenience. Equipped with nanoe™ X technology (Generator Mark 2, producing 9.6 trillion hydroxyl radicals per second), it ensures effective air purification, even for duct lengths up to 10 meters. The new wired remote control CZ-RTC6BL, with Bluetooth® connectivity, allows easy system settings for seamless operation.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

• Compatible with Panasonic PACi NX series outdoor units for both single split and multi split systems
• Includes drain pump
• High efficiency and energy saving
• Environmentally friendly R32 refrigerant
• Suitable for single, twin, triple and double twin applications
• Integrated with IoT solutions
• Suitable for commercial heating and cooling applications
• Compatible with low temperature unit configurations for cold rooms etc
• Improved air quality and purification with nanoe™ X (Generator Mark 2)
• Flexible installation with horizontal or vertical installation
• Maximum external static pressure 150Pa
• Compatible with 10kW - 14kW power range
• Optional Wi-Fi connectivity with Panasonic Commercial Wi-Fi adaptor (sold separately) for Panasonic Comfort Cloud app smart control
• Compatible with CONEX for comfort and control

Specification
