Product code: C000756

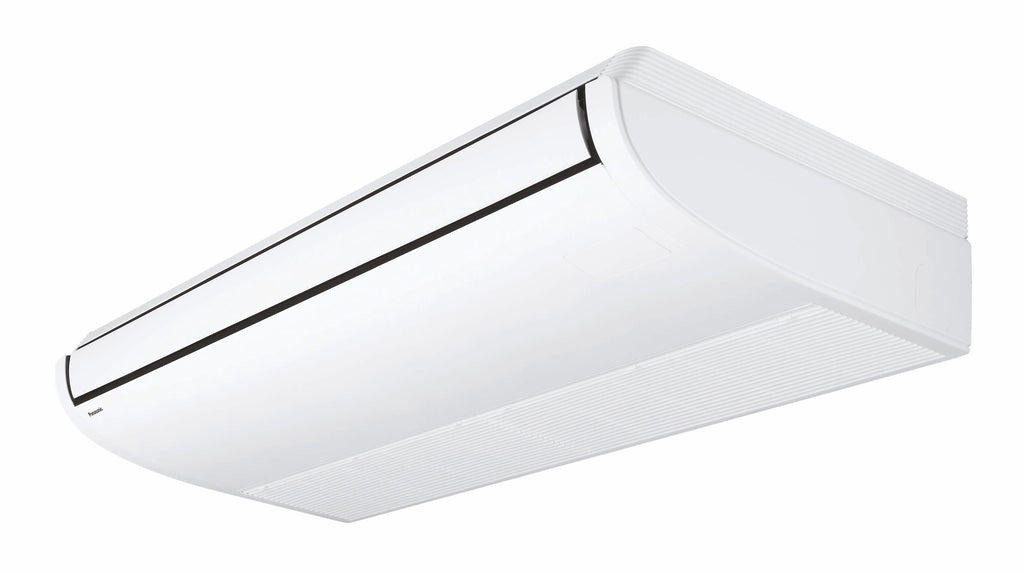

Panasonic PACi NX Series S-1014PT3E Ceiling Mount Indoor Unit 10.0-14.0kW R32

Panasonic PACi NX Series S-1014PT3E Ceiling Mount Indoor Unit 10.0-14.0kW R32
Panasonic PACi NX Series S-1014PT3E Ceiling Mount Indoor Unit 10.0-14.0kW R32
Panasonic PACi NX Series S-1014PT3E Ceiling Mount Indoor Unit 10.0-14.0kW R32

The Panasonic PACi NX Series Ceiling-mounted units deliver extensive and wide air distribution, making them ideal for large rooms ...

Read more
  • Suitable for single split and twin installations
  • Nanoe™ X technology (Mark 2 generator) improves air quality by inhibiting certain bacteria and virus growth
  • Easy integration with external fans for ERVs
  • Compatible with 12.1kW - 13.4kW range
  • Compatible with PACi and PACi Elite outdoor units
  • Commercial Wi-Fi adaptor available (CZ-CAPWFC1 sold separately)
£963.60 excl. VAT
£1,156.32inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Panasonic PACi NX Series Ceiling-mounted units deliver extensive and wide air distribution, making them ideal for large rooms. Their unified design ensures consistent height and depth across all capacities, providing a cohesive appearance in mixed installations. With a horizontal airflow range of up to 9.5 meters and a fresh air connection option, these units are both versatile and efficient. The slim 235mm height allows installation in narrow spaces, while silent operation enhances comfort. Equipped with nanoe™ X (Generator Mark 2, producing 9.6 trillion hydroxyl radicals per second) as standard, these units improve indoor air quality. The wired remote control CZ-RTC6BL, featuring Bluetooth® connectivity, simplifies system settings. Additional features include single and twin installation options and easy integration with external fans or ERVs via the PAW-FDC connector on the indoor unit PCB, enabling control through the Panasonic remote control.

As indoor units can be paired with various outdoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Suitable for single split and twin installations
  • Nanoe™ X technology (Mark 2 generator) improves air quality by inhibiting certain bacteria and virus growth
  • Easy integration with external fans for ERVs
  • Compatible with 12.1kW - 13.4kW range
  • Compatible with PACi and PACi Elite outdoor units
  • Commercial Wi-Fi adaptor available (CZ-CAPWFC1 sold separately)
  • New DC motor with energy saving technology
  • Suitable for larger areas with long-distance airflow distribution
  • Easy to maintain with self-diagnosing function
  • Reliable automatic restart function and fan operation
  • Easy to install
  • Energy class A++ in heating and cooling
  • Suitable for commercial application
  • Suitable for retail stores and schools
  • Compact design ideal for small spaces
  • R32 refrigerant for higher efficiency and smaller environmental impact
  • Wired remote controller with Bluetooth® connectivity for easy set up (CZ-RTC6WBL and CZ-RTC6BL available separately)



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 30 m³/min
Brand Panasonic
Certifications Met EN14511
Colour White
Compatible with Compatible with Panasonic Split Outdoor Units U-100PZH4E5. Contact Oceanair for more details.
COP* 4.00
EER* 4.06
Energy Rating (Cooling)* A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 15.88mm
Liquid Pipe Size 9.52mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No S-1014PT3E
Nom. Cooling Capacity 9.5kW
Nom. Heating Capacity 11.2kW
Operating Temperature Range (Cooling) -20°C to 52°CD
Operating Temperature Range (Heating) -20°C to 24°C
Phrase Single Phase
Power Source 230V, 50Hz
Product Depth 690mm
Product Height 235mm
Product Width 1590mm
Range Description Panasonic NX Series PT3
Refrigerant Type R32
Remote Controller Included No Controller Supplied. Please Order Separately.
SCOP* 4.5
SEER* 7.3
Sound Pressure Level 42 dBA
System Suitability Suitable for Commercial Use. Suitable for retail stores. Suitable for schools.
Type Split Under Ceiling Indoor Unit
Wi-Fi Enabled Wi-Fi available with WLAN adapter (sold separately)
* Efficiency Data Notes All efficiency data is calculated based on pairing with the unit listed in the "Compatible with" section. EER and COP calculation is based in accordance to EN14511

Visit your local branch or contact us for more information.
