Product code: C000998

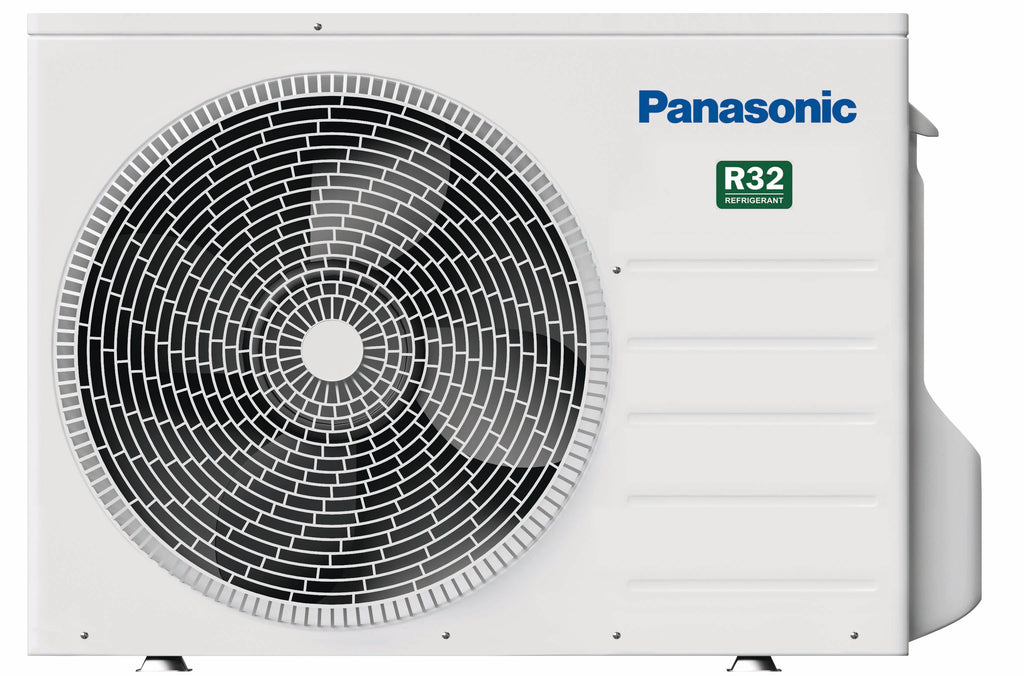

Panasonic PACi NX Standard U-50PZ3E5 Single Split Outdoor Unit 3.6kW 1ph R32

Panasonic PACi NX Standard U-50PZ3E5 Single Split Outdoor Unit 3.6kW 1ph R32
Panasonic PACi NX Standard U-50PZ3E5 Single Split Outdoor Unit 3.6kW 1ph R32

The Panasonic PACi NX Standard Series is ideal for economy and value commercial heating and cooling applications, available in a wide range of outputs (2.5 - 14.0 kW) ...

Read more
  • Single phase and single split system
  • R32 refrigerant for energy efficiency and smaller environmental impact
  • Part of the PACi NX Standard Series
  • Economical and good value commercial air conditioning system
  • Compatible with various Panasonic PACi NX indoor units
  • Compact chassis for easy installation
£700.20 excl. VAT
£840.24inc. VAT

Available in 1-2 days

Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.

Description

The Panasonic PACi NX Standard Series is ideal for economy and value commercial heating and cooling applications, available in a wide range of outputs (2.5 - 14.0 kW). Panasonic offers an impressive range of highly efficient commercial air conditioners, demonstrating a strong commitment to environmental sustainability. These systems feature advanced inverter compressor technology to optimise performance and energy efficiency. With 3-wire power and communication, they ensure ease of refurbishment. The range boasts top-class SEER/SCOP ratings in the standard inverter category, achieving SEER 8.1 A++ and SCOP 4.8 A++ at 3.6 kW (in 90x90 cassette models). Additional highlights include a low-height single-fan outdoor unit design and an extended operation range, capable of cooling at up to 43 °C and heating at temperatures as low as -15 °C.

As outdoor units can be paired with various indoor units and controls, please contact your nearest Oceanair branch for a tailored specification breakdown.

  • Single phase and single split system
  • R32 refrigerant for energy efficiency and smaller environmental impact
  • Part of the PACi NX Standard Series
  • Economical and good value commercial air conditioning system
  • Compatible with various Panasonic PACi NX indoor units
  • Compact chassis for easy installation
  • Slim and lightweight
  • Excellent seasonal performance even in extreme temperatures (-15°C to 43°C)
  • Easy to replace old systems with new 3 wire connections



*See Technical Attachments for more precise parameters and conditions.

Specification

Air Flow Rate (Cooling) @ High 32.7 m³/min
Brand Panasonic
Certifications Met EN14511
Colour White
Compatible with Compatible with Panasonic 4 Way Cassette Indoor Unit S-50PY3E. Compatible with various Panasonic Heating and Cooling Indoor Units. Contact Oceanair for more details.
COP* 3.94
EER* 3.5
Energy Rating (Cooling)* A++
Fitting Requirements Must be installed by an F-GAS Certified Installer. We require evidence of this before shipment. If you have any questions regarding these regulations, please contact us.
Gas Pipe Size 12.7mm
Liquid Pipe Size 6.35mm
Manufacturer Guarantee/ Manufacturer Warranty 3 Year Warranty
Manufacturer's Model No U-50PZ3E5
Max. Pipe Run 15m
Nom. Cooling Capacity 3.6kW
Nom. Heating Capacity 3.6kW
No. of Indoor Units 1
Operating Temperature Range (Cooling) -10°C to 43°C
Operating Temperature Range (Heating) -15°C to 24°C
Phrase Single Phase
Power Rating (Watts kW) 3.6kW
Power Source 220 - 240V, 50Hz
Product Depth 299mm
Product Height 619mm
Product Width 824mm
Range Description Panasonic PACi NX Standard Series
Refrigerant Type R32
Remote Controller Included No Controller Supplied.
SCOP* 4.4
SEER* 7.3
Sound Pressure Level 46 dBA
System Suitability Suitable for Commercial Use.
Type Commercial Single Split Outdoor Unit
* Efficiency Data Notes EER and COP calculation is based in accordance to EN14511. For models below 12 kW, the SEER and SCOP is calculated based on values of EU/626/2011.

Visit your local branch or contact us for more information.
