Oceanfloor Routed Low-Profile Light underfloor heating system

Underfloor heating

Oceanfloor Routed Low-Profile Light

The Oceanfloor Routed Low-Profile Light design works exceptionally well with various floor finishes - such as tiles, laminates, engineered wood, and even carpet in well insulated homes - making it ideal for both retrofit projects and new builds.

Engineered with grooves at 150mm centres for 12mm PEX or PB pipe, this system is compatible with a range of heat sources, including ground and air source heat pumps, as well as traditional gas boilers.

Product information

Designed for Versatility

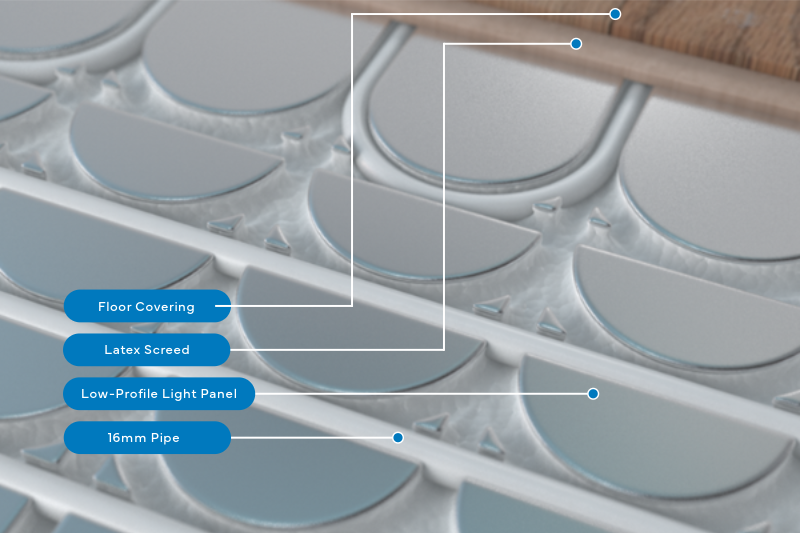

Designed with a 20mm high-density XPS board and an aluminium diffuser, these panels deliver excellent heat output while minimising floor height build-up, even in areas with limited headroom.

Ultra-lightweight and easy to lay, the panels provide rapid warm-up times. Tiles can be laid directly onto the panels, (though they should be neat-primed first) using a flexible tile adhesive (ensuring structural integrity is not compromised).

For the Routed Low-Profile Light system, we recommend using a levelling compound for added stability.

Please contact us for more information about this product.

Contact us for a free quote

Benefits of Oceanfloor Routed Low-Profile Light

Minimal Height Build-up

With a 20mm thickness and the ability to lay tiles directly onto primed panels using S2 tile adhesive, these panels are an excellent choice if height build-up is a concern.

Versatile Heat Sources

When combined with 16mm PE-RT UFH pipes, this panel is compatible with low-temperature heat sources - including air source heat pumps and gas boilers.
