Oceanfloor Routed Low Profile underfloor heating system

Underfloor heating

Oceanfloor Routed Low-Profile

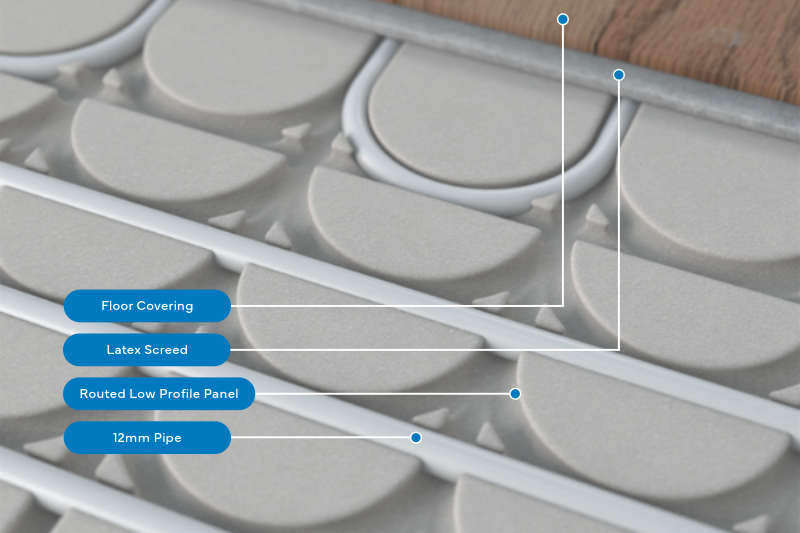

This underfloor heating system uses an 18mm high density screed type board and 12mm pipes to create a thermal mass, transferring the heat to the floor above.

The low-profile panels provide excellent heat outputs whilst keeping floor height build up to a minimum, making them ideal for projects where floor height build up is a consideration.

The underfloor heating pipes are positioned within the 18mm panel routing, allowing the highly conductive boards to transfer heat underfoot quickly, efficiently, and effectively throughout the room.

This system is a great alternative to pipe in screed systems in new homes on ground and upper floors.

Product Information

Designed for Conductivity

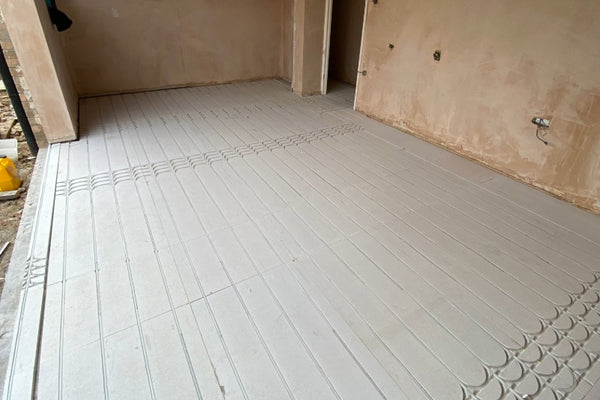

At just 18mm in height, these panels can be laid directly onto concrete or floorboards and accept a variety of floor finishes, including tiles, laminate, LVT, engineered wood, and even carpet in well insulated homes.

The unique one-piece panel design features built-in pipe returns, enabling faster installation compared to systems with separate straight panels and end returns. Grooved at 150mm centres, it is compatible with 12mm pipe and works efficiently with low-temperature heat sources such as heat pumps and gas boilers.

For the Routed Low Profile system. we recommend applying an 8-10mm layer of Pro Level Ultimate self-levelling compound once the pipe and panel installation is complete.

Please contact us for more information about this product.

Contact us for a free quote

Benefits of Oceanfloor Routed Low Profile

Minimal Floor Build Up

Made from high-density screed-type boards for optimal heat transfer with minimal floor build up. This makes it ideal for retrofit projects.

Versatile Finish Options

Suitable for tiles, laminate, LVT, engineered wood and even carpet in well insulated homes.

Fast Installation

Lay tiles directly onto existing floorboards or concrete with flexible adhesive for a quick, secure installation. The unique built in pipe return design also speeds up installation.
